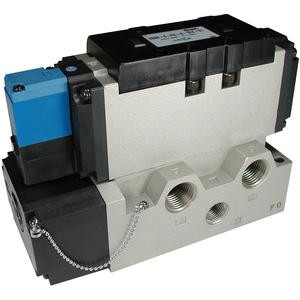

SMC VSR8-8-FG-S-1ZA04T 4/5 Port Solenoid Valve
SMC
$122.70
vss/vsr size 1, 2 and 3 are plug-in, base mounted interface valves conforming to iso standards. the valve design offers maximum flexibility and is available in either a high flow rubber seal (model vsr), or matched ground spool and sleeve (model vss). the lateral plug-in style manifold makes it easy to increase or decrease the manifold stations without wiring work. in addition, smc now offers a light weight, large capacity mini iso valve (size 01).
- vsr/s8-4 (size 01) conforms to iso 15407-2
- accomodate ip65 enclosure
- large capacity: flow rate 1000l/min (anr); cylinder driving
size 100 - light weight (3 position): 0.26kg
- Seal Type:
- Rubber
- Configuration:
- 2-position
- Number of Solenoids:
- Single
- Voltage:
- 100VAC/50Hz, 115VAC/60HZ
- Pilot:
- Pilot Exhaust through Footprint
- Subplate:
- Side 1/2
- Option:
- Standard Internal Pilot
