Description

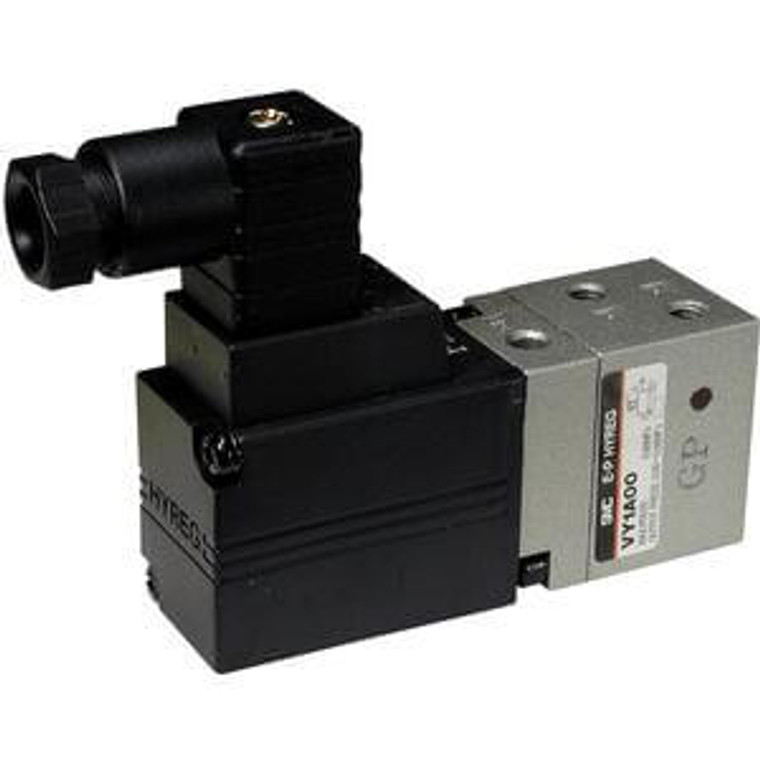

Vy1, Electro Pneumatic Regulator
A Hybrid Regulator Is Created From A Regulator And A Solenoid Valve With The Electro-Pneumatic Regulator Series Vy1. A Maximum Effective Area Of 670Mm (2B) Can Be Covered By The Combination Of An Ultra-Compact Electro-Pneumatic Pilot Valve (22.4 X 30 X 39) And A 3 Port, High-Capacity Exhaust Main Regulator (Vex1*00 Series). Having The Amplifier Built Into The Electro-Pneumatic Pilot Valve, Only An External (24V Dc) Power Supply And (1 To 5V Dc) Signal Voltage Need To Be Connected Making Handling Simple. Using The Vvexb/2/4 Series, A Maximum 10 Station Manifold Is Possible.
-
- Electro Pneumatic Regulator- Step-Less Control Through Electric Signals
- Simple Circuit Configuration
- Internal Or External Pilot Available
- Base Mounted Or Body Ported Styles
-
