Description

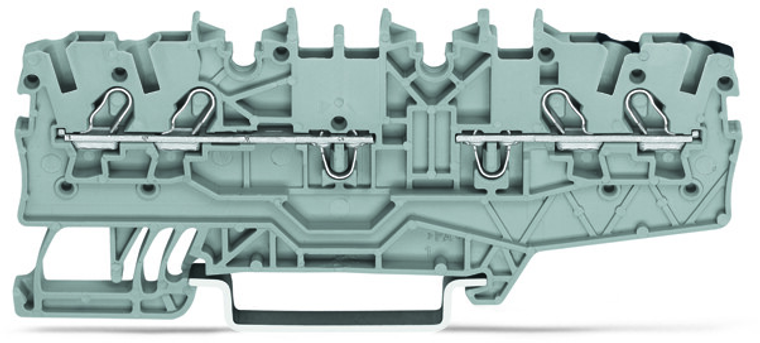

Double potential terminal block; 1 mm®; both potentials can be commoned; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMPp>
View AllClose
Electrical Data
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 13.5 A
- Rated current (2): 17.5 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 15 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 15 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 10 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 10 A
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 13 A
- Rated current (Ex e II) with jumper: 12 A
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Number of connection points (connection type): 2
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 1 mm
- Solid conductor: 0.14 1.5 mm / 24 16 AWG
- Solid conductor, push-in termination: 0.5 1.5 mm / 20 16 AWG
- Fine-stranded conductor: 0.14 1.5 mm / 24 16 AWG
- Fine-stranded conductor with ferrule with plastic collar: 0.5 0.75 mm / 20 18 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 0.5 0.75 mm / 20 18 AWG
- Strip length: 9 11 mm / 0.35 0.43 inch
- Number of connection points: 2
- Total number of connection points: 4
- Total number of potentials: 2
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
- Number of jumper slots: 2
Geometrical Data
- Width: 3.5 mm / 0.138 inch
- Height from upper-edge of DIN-35 rail: 32.5 mm / 1.28 inch
- Depth: 85.9 mm / 3.382 inch
Mechanical Data
- Design: horizontal
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
Material Data
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.143 MJ
- Weight: 6.470 g
Commercial data
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4055143340441
- Customs Tariff No.: 85369010000
