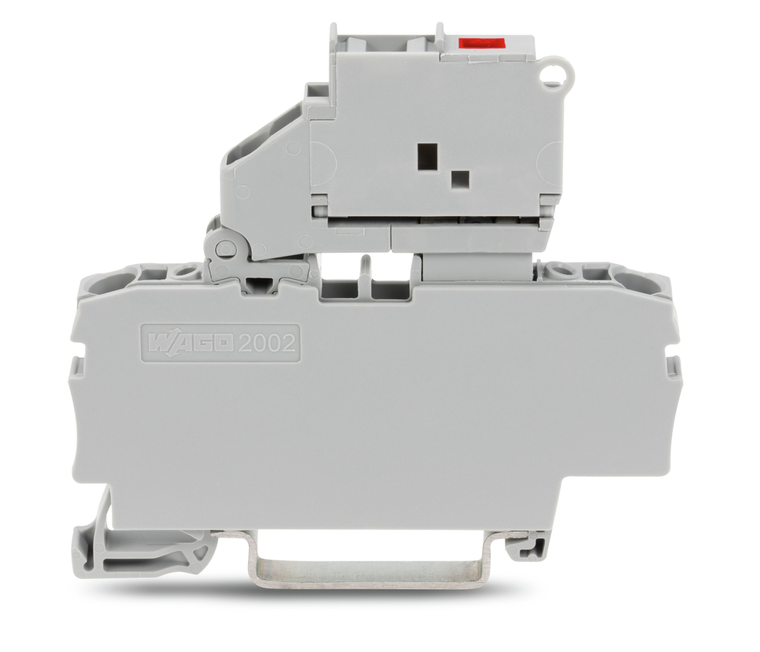

TOPJOBS fuse disconnect terminal block; with pivoting fuse holder for 5 x 20 mm fuse; with blown fuse LED indication for 12 - 30 V; rail mount; 2-conductor; 6.2 mm wide; gray.
The WAGO 2002 TOPJOB S series feed-through terminal block is a gray, 1-deck unit with a fused-disconnect lever type for 5x20mm fuses, featuring a blown-fuse LED indicator for 12-30Vdc. It includes a built-in end plate, side/lateral and center marking slots, and is suitable for Ex e II applications. The terminal block supports 1 feed-through pole for 2 wires (1 push-in + 1 push-in) with a nominal cross-section of 2.5mm², accommodating wire sizes from 0.25mm² to 4mm² or #22AWG to #12AWG. It has a rated current of 6.3A and uses Push-in CAGE CLAMP spring connections, designed for mounting on a DIN-35 rail with a width of 6.2mm.
- actuation type:
- Operating tool
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 41.9 mm / 1.65 inch
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 6 mm
- fire load:
- 0.432 MJ
- flammability class per ul94:
- V0
- height:
- 27.6 mm / 1.087 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- locking of plug in connection:
- Without
- material group:
- I
- material of the additional spring for socket contact:
- Chrome nickel spring steel (CrNi)
- mismating protection:
- Yes
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 800 V
- packaging type:
- Box
- pin spacing:
- 7.62 mm / 0.3 inch
- pole no:
- 4
- rated current:
- 41 A
- rated current csa use group c:
- 41 A
- rated current ul use group c:
- 42 A
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group c:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 29.822 g
- width:
- 32.36 mm / 1.274 inch
