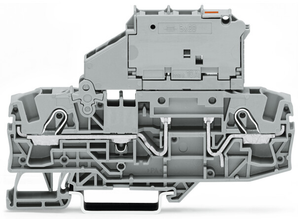

WAGO 2002-1611/1000-836 fuse terminal block, 2-position, 22AWG to 12AWG, 2.5 mm², push-in, 6.3 A, 250 V
Wago
$15.74
TOPJOBS fuse disconnect terminal block; with pivoting fuse holder for 5 x 20 mm fuse; with blown fuse LED indication for 230 V; rail mount; 2-conductor; 6.2 mm wide; gray.
The WAGO 2002 TOPJOB S series feed-through terminal block is a gray, 1-deck unit with a fused-disconnect lever type for 5x20mm fuses, featuring a blown-fuse LED indicator for 230Vdc. It includes a built-in end plate, side/lateral and center marking slots, and is suitable for Ex e II applications. The terminal block supports 1 feed-through pole (1P) with 2 push-in wire connections (1+1) and a nominal cross-section of 2.5mm², accommodating wire sizes from 0.25mm² to 4mm² or #22AWG to #12AWG. It has a rated current of 6.3A and uses Push-in CAGE CLAMP spring connections, designed for mounting on DIN-35 rails (35 x 15 / 35 x 7.5) with a width of 6.2mm, equivalent to model 200216111000836.
- actuation type:
- Operating tool || Push-button
- color:
- White
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 35 mm / 1.378 inch
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 mm / 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 1.5 mm / 20 16 AWG
- fire load:
- 0.218 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.3 mm / 0.878 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- Plain
- mounting type:
- Screw mount
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Bag
- pin spacing:
- 12 mm / 0.472 inch
- pole no:
- 2
- rated current:
- 32 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- stranded conductor:
- 0.5 4 mm / 20 12 AWG
- strip length:
- 10 11 mm / 0.39 0.43 inch
- weight:
- 13.500 g
- width:
- 24 mm / 0.945 inch
- wiring direction:
- Side-entry wiring
