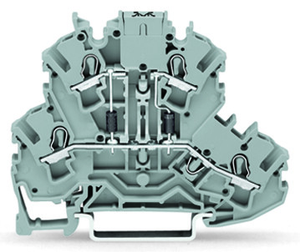

Double-deck double-diode terminal block; 2 x 1N4007 (N-P between first and second level, second level commoned); rail mount; 2-conductor; 5.2 mm wide; gray.
The WAGO 2002 TOPJOB S series component feed-through terminal block is a double-deck terminal block featuring two 1N4007 diodes with anodes on the bottom side, side and center marking slots, and a gray color. It includes one disconnect feed-through pole and one feed-through pole, accommodating four wires (two push-in connections on each level) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. The terminal block is rated for a current of 0.5A and utilizes Push-in CAGE CLAMP spring connections for secure wiring. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5.2mm, equivalent to part number 200222131000487.
- actuation type:
- Push-in || Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 51.7 mm / 2.035 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.238 MJ
- flammability class per ul94:
- V0
- height:
- 69.7 mm / 2.744 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 0.5 A
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 10.600 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
