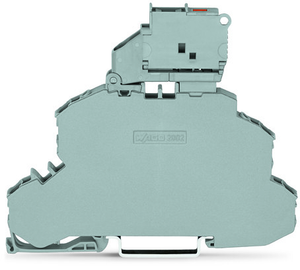

| Description | Double-deck fuse disc. with fuse holder; Through/Fuse terminal block; for 5 x 20 mm miniature metric fuse; 230 V; with blown fuse indication by LED | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | Safety information 1: Electrical ratings are given by the fuse and blown fuse indication. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The WAGO 2002 TOPJOB S series is a gray, double-deck feed-through terminal block with a fused-disconnect lever type for 5x20mm fuses and a blown-fuse LED indicator for 230Vdc. It features side and center marking slots, is suitable for Ex e II applications, and has "L/L" marking. The terminal block has 2 feed-through poles accommodating 4 wires (2 push-in + 2 push-in) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. It supports a rated current of 6.3A and uses Push-in CAGE CLAMP spring connections, designed for mounting on DIN-35 rails (35 x 15 / 35 x 7.5) with a width of 6.2mm, equivalent to model number 200226111000836.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- type of fuse:
- Cylindrical fuse 5 x 20 mm
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP«
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 76.4 mm / 3.008 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 ª 2.5 mm / 18 ª 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 2.5 mm / 22 ª 14 AWG
- fire load:
- 0.477 MJ
- flammability class per ul94:
- V0
- height:
- 93 mm / 3.661 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 2 mA
- operation status indicator:
- 230 V
- packaging type:
- Box
- rated current:
- 6.3 A
- rated current csa use group b:
- 6.3 A
- rated current csa use group c:
- 6.3 A
- rated current ex e ii:
- 6.3 A
- rated current ul use group b:
- 6.3 A
- rated current ul use group c:
- 6.3 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 230 V
- rated voltage csa use group c:
- 230 V
- rated voltage en ex e ii:
- 275 V
- rated voltage ul use group b:
- 230 V
- rated voltage ul use group c:
- 230 V
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- ratings per:
- IEC/EN 60947-7-3
- solid conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- solid conductor push in termination:
- 0.75 ª 4 mm / 18 ª 12 AWG
- strip length:
- 10 ª 12 mm / 0.39 ª 0.47 inch
- weight:
- 23.143 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
