| Description | Triple-deck diode terminal block; with diode 1N4007 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

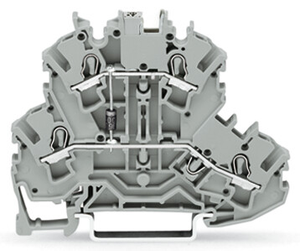

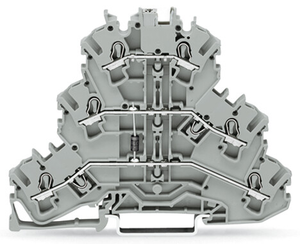

The WAGO 2002 TOPJOB S series component feed-through terminal block is a triple-deck terminal block with a built-in diode (1N4007, anode on the bottom side) and features side and center marking slots. It is gray in color and has three feed-through poles, each accommodating three push-in connections for a total of six wires. The terminal block supports a nominal cross-section of 2.5mm² and is suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. It is rated for a current of 0.5A and utilizes Push-in CAGE CLAMP spring connections. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5.2mm. It is equivalent to the model number 200232111000410.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 69.5 mm / 2.736 inch
- design:
- Angled
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.336 MJ
- flammability class per ul94:
- V0
- height:
- 93.3 mm / 3.673 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 0.5 A
- rated current ul use group b:
- 20 A
- rated current ul use group c:
- 20 A
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 17.580 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
