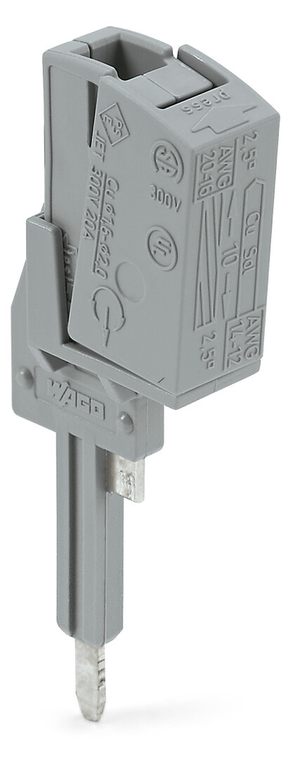

Test plug adapter N/L; for 2003-6641 and 2003-6640 Multilevel Installation Terminal Blocks; for vertical test slot; 2-pole.
The WAGO Test Plug Adapter N/P from the 2003 TOPJOB S series is a 2-pole (2P) connector designed for wire sizes ranging from 0.5mm² to 2.5mm². It supports a rated current of 16A and comes in a gray color. The adapter features CAGE CLAMP spring connections and is compatible with vertical test slots. It is equivalent to the model number 2003499.
- color:
- Gray
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- fine stranded conductor:
- 0.5 2.5 mm / 20 16 AWG
- fire load:
- 0.065 MJ
- flammability class per ul94:
- V0
- insulation material:
- Polyamide (PA46)
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 16 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.5 2.5 mm / 20 16 AWG
- stranded conductor:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 9 11 mm / 0.35 0.43 inch
- weight:
- 3.328 g
- wiring direction:
- Side-entry wiring
