Multilevel installation terminal block; with operating slots; 2.5 mm²; with N-disconnect slide link; NT/L; Push-in CAGE CLAMP; 2,50 mm²; gray.

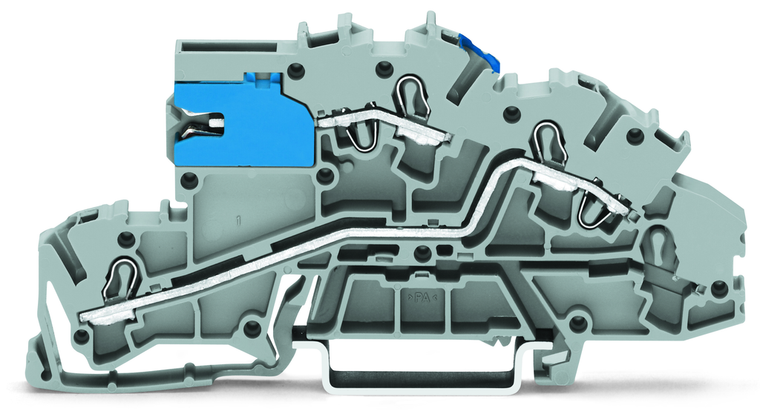

The WAGO 2003 TOPJOB S series terminal block is a gray, multilevel installation feed-through and neutral-through terminal block with two decks and a slide-link neutral-disconnect feature. It includes side and center marking slots labeled "NT/L" and supports one feed-through pole and one neutral-disconnect link, accommodating three wires with push-in CAGE CLAMP spring connections. Designed for a nominal cross-section of 2.5mm², it supports wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG) and is rated for currents of 24A and 32A. The terminal block is mounted on a DIN-35 rail and has a width of 5.2mm, equivalent to model 20037640.
- actuation type:
- Push-in || Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 42.3 mm / 1.665 inch
- design:
- Angled
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.252 MJ
- flammability class per ul94:
- V0
- height:
- 96 mm / 3.78 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 24 A
- rated current 2:
- 32 A
- rated surge voltage iii 3:
- 4 kV
- rated surge voltage iii 3 2:
- 6 kV
- rated voltage iii 3 2:
- 400 V
- ratings note:
- Potential ground
- ratings note 2:
- Potential potential
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 14.165 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
