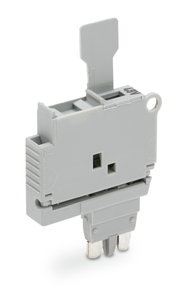

WAGO 2004-911/1000-867 Fuse plug; with pull-tab; for 5 x 20 mm miniature metric fuse; with indicator lamp; 120 V; 6.1 mm wide; gray
Wago
$12.07
Fuse plug with pull-tab; for 5 x 20 mm miniature metric fuse; with indicator lamp; 120 V; 6.1 mm wide.
The WAGO 2004 TOPJOB S series fuse plug features a pull-tab and an LED indicator, operates at a supply voltage of 120Vdc, and has a rated current of 6.3A. It is gray in color, designed for plug-in mounting, and is compatible with 5x20mm miniature metric fuses. The product is equivalent to the part number 20049111000867.
- type of fuse:
- Cylindrical fuse 5 x 20 mm
- color:
- Gray
- country of origin sales organisation germany:
- DE
- fire load:
- 0.063 MJ
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- nominal voltage iii 3:
- 250 V
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 2 mA
- operation status indicator:
- 120 V
- packaging type:
- Box
- rated current:
- 6.3 A
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- weight:
- 4.241 g
- width:
- 6.1 mm / 0.24 inch
