Wago

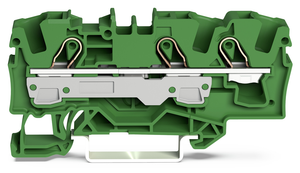

WAGO 2006-1301/000-014

SKU:

2006-1301/000-014

UPC:

MPN:

2006-1301/000-014

Condition:

New

actuation type:

Push-in || Operating tool

approvals per:

CSA 22.2 No 158

color:

Brown

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP®

CONTINUOUS OPERATING TEMPERATURE:

-60 ƒƒ¢€¦ +105 ƒƒ‚°C

COUNTRY OF ORIGIN VKORG GERMANY:

DE

CUSTOMS TARIFF NUMBER VKORG GERMANY:

85369010000

DEPTH FROM UPPER EDGE OF DIN RAIL:

32.9 mm / 1.295 inches

FINE STRANDED CONDUCTOR:

0.5 ƒƒ¢€¦ 10 mmƒƒ‚² / 20 ƒƒ¢€¦ 8 AWG

FINE STRANDED CONDUCTOR WITH FERRULE PUSH IN TERMINATION:

2.5 ƒƒ¢€¦ 6 mmƒƒ‚² / 16 ƒƒ¢€¦ 10 AWG

FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:

0.5 ƒƒ¢€¦ 6 mmƒƒ‚² / 20 ƒƒ¢€¦ 10 AWG

FIRE LOAD:

0.222 MJ

FLAMMABILITY CLASS PER UL94:

V0

HEIGHT:

73.3 mm / 2.886 inches

INSULATION MATERIAL:

Polyamide (PA66)

LEGEND RATINGS:

(III / 3) ƒƒ¢‰™ Overvoltage category III / Pollution degree 3

MARKING LEVEL:

Center/side marking

MATERIAL GROUP:

I

MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:

MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=

MISMATING PROTECTION:

MOUNTING NOTE=

MOUNTING TYPE:

DIN-35 rail

NOMINAL CROSS SECTION:

6 mmƒƒ‚²

NOMINAL VOLTAGE III 3:

800 V

NOTE CONDUCTOR CROSS SECTION:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

NOTE MATERIAL DATA:

Information on material data can be found here

POWER LOSS PER POLE POTENTIAL:

1.3112 W

PROCESSING TEMPERATURE:

-35 ƒƒ¢€¦ +85 ƒƒ‚°C

PRODUCT GROUP CODE:

22

RATED CURRENT:

41 A

RATED CURRENT 2:

57 A

RATED CURRENT CSA USE GROUP B:

50 A

RATED CURRENT CSA USE GROUP C:

50 A

RATED CURRENT EX E II:

36 A

RATED CURRENT EX E II WITH JUMPER:

33 A

RATED CURRENT IN FOR SPECIFIED POWER LOSS:

41 A

RATED CURRENT UL USE GROUP B:

50 A

RATED CURRENT UL USE GROUP C:

50 A

RATED IMPULSE VOLTAGE III 3:

8 kV

RATED VOLTAGE CSA USE GROUP B:

600 V

RATED VOLTAGE CSA USE GROUP C:

600 V

RATED VOLTAGE EN EX E II:

550 V

RATED VOLTAGE UL USE GROUP B:

600 V

RATED VOLTAGE UL USE GROUP C:

600 V

RATINGS PER:

ATEX: PTB 05 ATEX 1030 U / IECEx: PTB 05.0014U (Ex eb IIC Gb)

REFERENCE HAZARDOUS AREAS:

See installation notes in section ƒƒ¢€œKnowledgeƒƒ¢€ andDownloads ƒƒ¢€“ Documentation ƒƒ¢€“ Additional Information: Technical Section

RESISTANCE VALUE FOR SPECIFIED CURRENT DEPENDENT POWER LOSS:

0.00078 ƒƒŽ©

SOLID CONDUCTOR:

0.5 ƒƒ¢€¦ 10 mmƒƒ‚² / 20 ƒƒ¢€¦ 8 AWG

SOLID CONDUCTOR PUSH IN TERMINATION:

2.5 ƒƒ¢€¦ 10 mmƒƒ‚² / 14 ƒƒ¢€¦ 8 AWG

STRIP LENGTH:

13 ƒƒ¢€¦ 15 mm / 0.51 ƒƒ¢€¦ 0.59 inches

WEIGHT:

12.694 g

WIDTH:

7.5 mm / 0.295 inches

WIRING DIRECTION:

Front-entry wiring
