Description
Distribution terminal block, with operating slots 1 x 6 mm² / 6 x 1.5 mm², black.
View AllClose

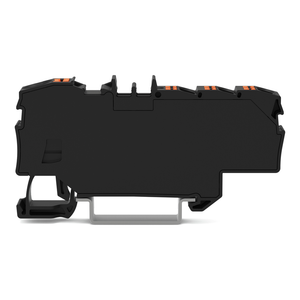

The WAGO 2006 TOPJOB S series feed-through distribution terminal block is a black, single-deck unit with a built-in end plate, featuring side and center marking slots. It supports one feed-through pole and accommodates up to seven wires (one push-in and six push-in connections) with a nominal cross-section of 6mm², suitable for wire sizes ranging from 0.5mm² to 10mm² or #20AWG to #8AWG. The terminal block is rated for currents of 41A and 57A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 9mm, equivalent to model 20068035.
