2-conductor disconnect/test terminal block; e.g., current transformer circuits; with receptacle for adjacent jumper with switch lever; for 4 mm à test plugs; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP; 6,00 mm²; gray.

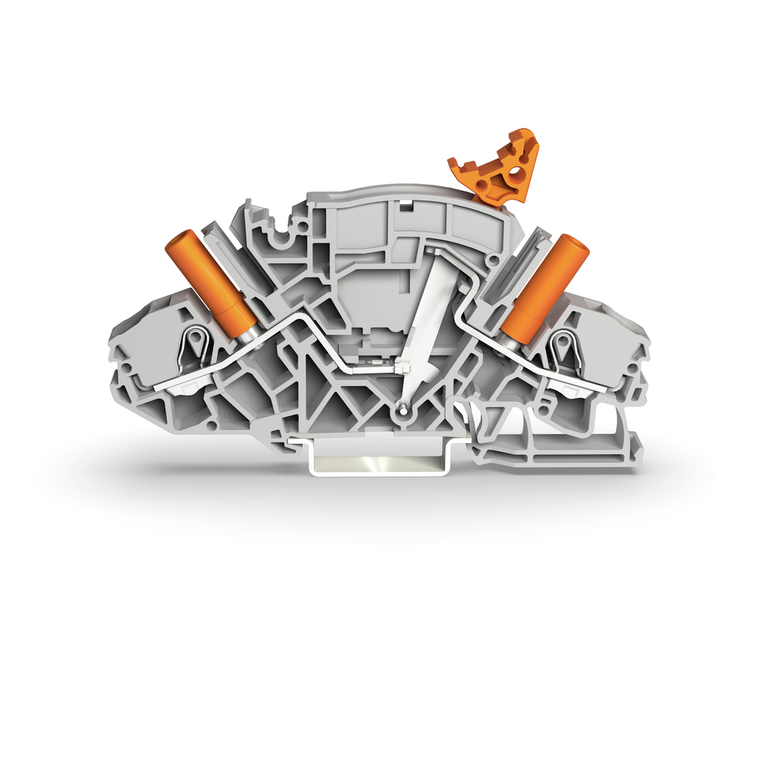

The WAGO 2007 TOPJOB S series is a gray feed-through disconnect/test terminal block featuring a single deck with a lever disconnect and connector for adjacent jumpers. It includes side and center marking slots and accommodates one disconnect feed-through pole for two wires using push-in connections. The terminal block supports a nominal cross-section of 6mm² and is suitable for wire sizes ranging from 0.5mm² to 10mm² or #20AWG to #8AWG. It is rated for a current of 30A and utilizes Push-in CAGE CLAMP spring connections. The unit is designed for mounting on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 and has an 8mm width, equivalent to model number 20078821.
- actuation type:
- Push-in || Operating tool
- approvals per:
- UL 1059
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 65.3 mm / 2.571 inch
- design:
- Angled
- farbe der pr fbuchse:
- Orange
- fine stranded conductor:
- 0.5 10 mm / 20 8 AWG
- fine stranded conductor with ferrule push in termination:
- 2.5 6 mm / 16 10 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 6 mm / 20 10 AWG
- fine stranded conductor with uninsulated ferrule:
- 1.5 6 mm / 16 10 AWG
- fire load:
- 0.418 MJ
- flammability class per ul94:
- V0
- height:
- 99.6 mm / 3.921 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 6 mm
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- rated current:
- 30 A
- rated current csa use group b:
- 30 A
- rated current csa use group c:
- 30 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 30 A
- rated current ul use group c:
- 30 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group c:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 300 V
- solid conductor:
- 0.5 10 mm / 20 8 AWG
- solid conductor push in termination:
- 1 10 mm / 14 8 AWG
- strip length:
- 13 15 mm / 0.51 0.59 inch
- weight:
- 27.760 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
