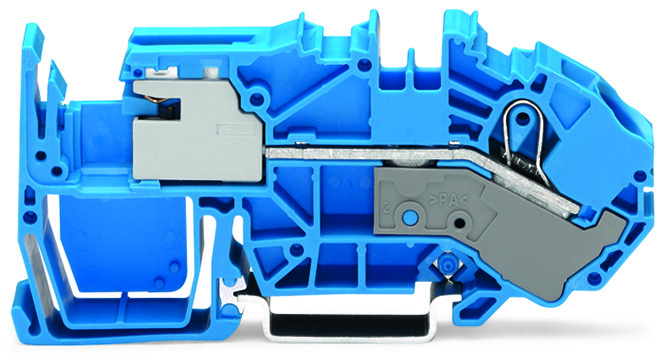

1-conductor power distribution disconnect terminal block; 16 mm; Push-in CAGE CLAMPp>
Electrical Data
- Rated voltage (III / 3): 250 V
- Rated impulse voltage (III / 3): 4 kV
- Rated current: 76 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: Push-in CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Nominal cross section: 16 mm
- Solid conductor: 0.5 16 mm / 20 6 AWG
- Solid conductor, push-in termination: 6 16 mm / 14 6 AWG
- Fine-stranded conductor: 0.5 25 mm / 20 4 AWG
- Fine-stranded conductor with ferrule with plastic collar: 6 16 mm / 10 6 AWG
- Fine-stranded conductor with ferrule, push-in termination, from: 6 16 mm / 10 6 AWG
- Strip length: 18 20 mm / 0.71 0.79 inch
- Total number of connection points: 1
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
- Number of jumper slots: 2
Geometrical Data
- Width: 12 mm / 0.472 inch
- Height from upper-edge of DIN-35 rail: 40.8 mm / 1.606 inch
- Depth: 86 mm / 3.386 inch
Mechanical Data
- Design: Angled
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
Material Data
- Color: gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.592 MJ
- Weight: 34.100 g
Commercial data
- Packaging type: BOX
- Country of origin: PL
- GTIN: 4045454685294
- Customs Tariff No.: 85369010000
The WAGO 2016 TOPJOB S series power distribution feed-through terminal block is a gray, single-deck unit with a slide-link pole-disconnect feature and side/lateral and center marking slots. It supports one feed-through pole and one push-in wire connection, accommodating a main feed-through conductor with a nominal cross-section of 16mm². It is suitable for wire sizes ranging from 0.5mm² to 25mm² or #20AWG to #4AWG, and is rated for a current of 76A. The terminal block uses Push-in CAGE CLAMP spring connections and is designed for mounting on a DIN-35 rail with a 12mm width, equivalent to model 20167711.
- actuation type:
- Push-in || Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- PL
- depth from upper edge of din rail:
- 40.8 mm / 1.606 inch
- design:
- Angled
- fine stranded conductor:
- 0.5 25 mm / 20 4 AWG
- fine stranded conductor with ferrule push in termination:
- 6 16 mm / 10 6 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 16 mm / 20 6 AWG
- fire load:
- 0.590 MJ
- flammability class per ul94:
- V0
- height:
- 99.7 mm / 3.925 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 16 mm
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 76 A
- rated surge voltage iii 3:
- 4 kV
- solid conductor:
- 0.5 16 mm / 20 6 AWG
- solid conductor push in termination:
- 6 16 mm / 14 6 AWG
- strip length:
- 18 20 mm / 0.71 0.79 inch
- weight:
- 34.100 g
- width:
- 12 mm / 0.472 inch
- wiring direction:
- Front-entry wiring
