WAGO 2020-107/134-000
Wago
$13.12

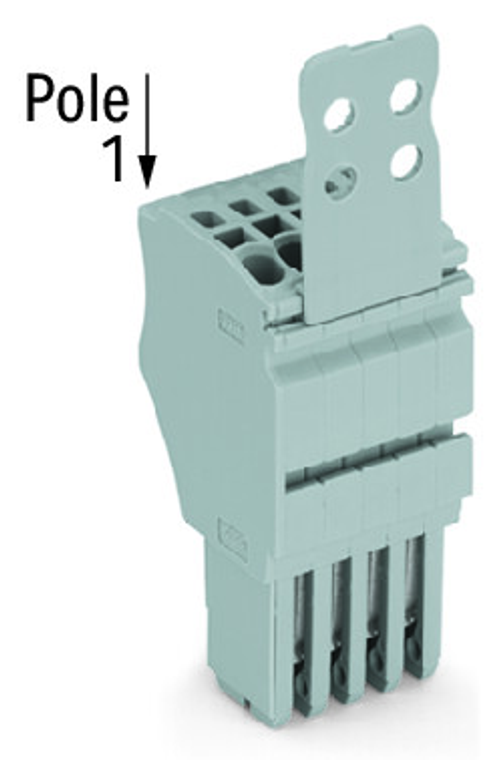

1-conductor female connector; Push-in CAGE CLAMP; 1.5 mm²; Pin spacing 3.5 mm; 7-pole; Strain relief plate; 1,50 mm²; gray.
The WAGO 2020 X-COM S-Mini series female plug features a strain relief plate, 3.5mm pin spacing, and 7 poles, suitable for wire sizes ranging from 0.14mm² to 1.5mm² or #24AWG to #16AWG. It supports a rated current of 13.5A and comes in a gray color. The plug includes Push-in CAGE CLAMP spring connections and is designed for plug-in mounting with a width of 25.2mm, equivalent to part number 2020107134000.
- actuation type:
- Operating tool || Push-in
- approvals per:
- C22.2 No 158
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP«
- connector connection type:
- For conductor
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 22.4 mm / 0.882 inch
- fine stranded conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 ª 0.75 mm / 20 ª 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.14 ª 0.75 mm / 24 ª 18 AWG
- fire load:
- 0.305 MJ
- flammability class per ul94:
- V0
- height:
- 64 mm / 2.52 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 3.5 mm / 0.138 inch
- nominal cross section:
- 1 mm
- nominal voltage iii 3:
- 500 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- pole no:
- 7
- rated current:
- 13.5 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 15 A
- rated current ul use group c:
- 15 A
- rated current ul use group d:
- 15 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group c:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 61984
- safety information 1:
- According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load.
- safety information 2:
- Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug.
- solid conductor:
- 0.14 ª 1.5 mm / 24 ª 16 AWG
- solid conductor push in termination:
- 0.5 ª 1.5 mm / 20 ª 16 AWG
- strip length:
- 9 ª 11 mm / 0.35 ª 0.43 inch
- weight:
- 16.638 g
- width:
- 25.2 mm / 0.992 inch
- wiring direction:
- Front-entry wiring
