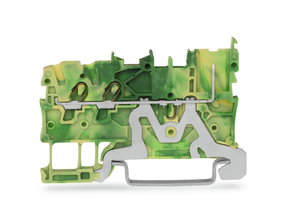

WAGO 2020-1207 1-conductor/1-pin ground carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 1,00 mm²; green-yellow
Wago
$3.52
X-COM S-Mini ground carrier/feedthrough terminal block; rail mount; 1-conductor, 1-pin; 3.5 mm wide; green-yellow.
The WAGO 2020 X-COM S-Mini series carrier ground/earthing terminal block is a green-yellow, single-deck component designed for grounding/protective-earth applications. It features side and center marking slots and accommodates two wires (one push-in and one plug-in pin) with a nominal cross-section of 1mm², suitable for wire sizes ranging from 0.14mm² to 1.5mm² or #24AWG to #16AWG. The terminal block utilizes Push-in CAGE CLAMP spring connections and plug-in pin connections, and it is mounted on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 3.5mm, equivalent to model 20201207.
- actuation type:
- Operating tool || Push-in
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 32.5 mm / 1.28 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.14 1.5 mm / 24 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 0.75 mm / 20 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.14 0.75 mm / 24 18 AWG
- fire load:
- 0.083 MJ
- flammability class per ul94:
- V0
- height:
- 50.8 mm / 0.2 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 1 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- number of connection points:
- 1
- number of connection points 2:
- 1
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.14 1.5 mm / 24 16 AWG
- solid conductor push in termination:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 9 11 mm / 0.35 0.43 inch
- weight:
- 5.660 g
- width:
- 3.5 mm / 0.138 inch
- wiring direction:
- Front-entry wiring
