Wago

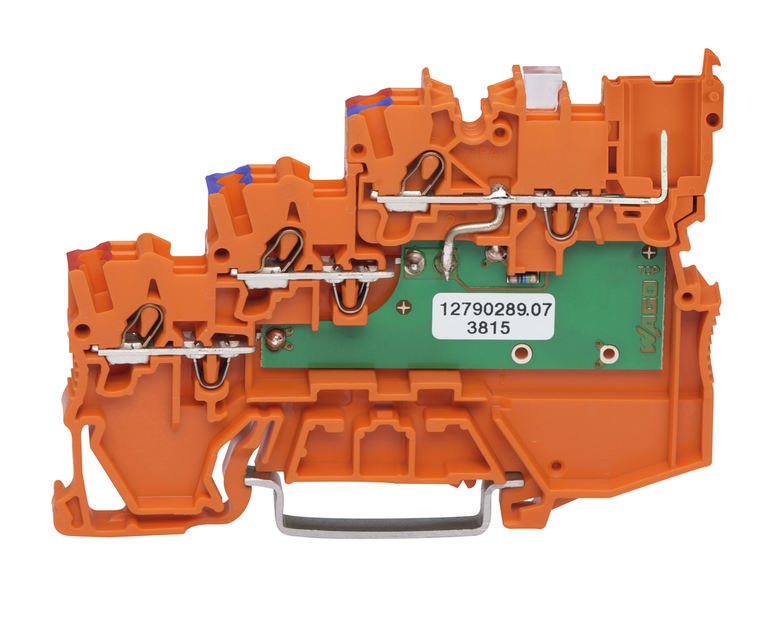

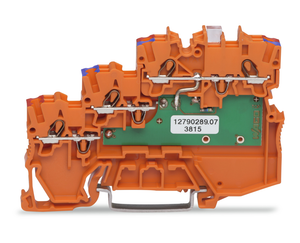

WAGO 2020-5372/1102-953

SKU:

2020-5372/1102-953

UPC:

MPN:

2020-5372/1102-953

Condition:

New

actuation type:

Push-in || Operating tool

approvals per:

UL 1059

color:

Orange

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

52.4 mm / 2.063 inch

design:

Horizontal type

fine stranded conductor:

0.14 1.5 mm / 24 16 AWG

fine stranded conductor with ferrule push in termination:

0.5 0.75 mm / 20 18 AWG

fine stranded conductor with insulated ferrule:

0.14 0.75 mm / 24 18 AWG

fire load:

0.279 MJ

flammability class per ul94:

V0

height:

81.1 mm / 3.193 inch

insulation material:

Polyamide (PA66)

marking level:

Center/side marking

mounting type:

DIN-35 rail

nominal cross section:

1 mm

note conductor cross section:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

packaging type:

Box

rated current:

13.5 A

rated current csa use group c:

0.416666666666667

rated current ul use group b:

15 A

rated current ul use group d:

15 A

rated voltage csa use group c:

24 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

solid conductor:

0.14 1.5 mm / 24 16 AWG

solid conductor push in termination:

0.5 1.5 mm / 20 16 AWG

strip length:

9 11 mm / 0.35 0.43 inch

weight:

15.991 g

width:

7 mm / 0.276 inch

wiring direction:

Front-entry wiring
