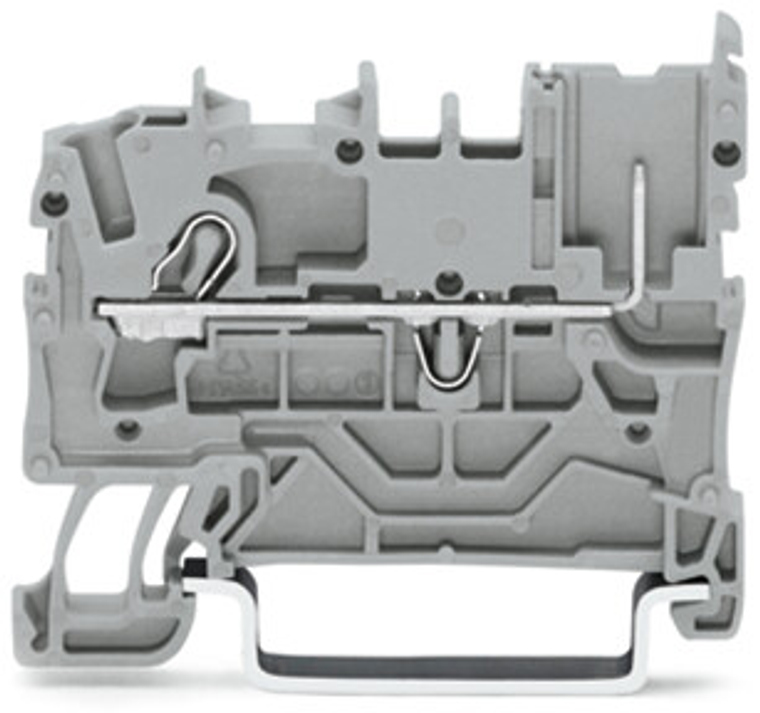

WAGO 2022-1202 1-conductor/1-pin carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; orange

(No reviews yet) Write a Review
SKU:
2022-1202
MPN:
51233826
Condition:
New
actuation type:
Operating tool || Push-in
approvals per:
C22.2 No 158
color:
Orange
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP
country of origin sales organisation germany:
CN
depth from upper edge of din rail:
32.5 mm / 1.28 inch
design:
Horizontal type
fine stranded conductor:
0.25 4 mm / 22 12 AWG
fine stranded conductor with ferrule push in termination:
1 2.5 mm / 18 14 AWG
fine stranded conductor with insulated ferrule:
0.25 2.5 mm / 22 14 AWG
fire load:
0.112 MJ
flammability class per ul94:
V0
height:
48.5 mm / 1.909 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center/side marking
mounting type:
DIN-35 rail
nominal cross section:
2.5 mm
nominal voltage iii 3:
690 V
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
number of connection points:
1
number of connection points 2:
1
packaging type:
Box
rated current:
24 A
rated current 2:
32 A
rated current csa use group c:
20 A
rated current ul use group b:
20 A
rated current ul use group c:
20 A
rated surge voltage iii 3:
6 kV
rated voltage csa use group c:
600 V
rated voltage ul use group b:
600 V
rated voltage ul use group c:
600 V
ratings per:
IEC/EN 60947-7-1
solid conductor:
0.25 4 mm / 22 12 AWG
solid conductor push in termination:
0.75 4 mm / 18 12 AWG
strip length:
10 12 mm / 0.39 0.47 inch
weight:
5.038 g
width:
5.2 mm / 0.205 inch
wiring direction:
Front-entry wiring
$1.77

Description

Electrical Data
  • Rated voltage (III / 3): 690 V
  • Rated impulse voltage (III / 3): 6 kV
  • Rated current: 24 A
  • Rated current (2): 32 A
  • Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
  • Connection technology: Push-in CAGE CLAMP<sup></sup>
  • Actuation type: Push-in
  • Connectable conductor materials: Copper
  • Nominal cross section: 2.5 mm
  • Solid conductor: 0.25 ˜ 4 mm / 22 ˜ 12 AWG
  • Solid conductor, push-in termination: 0.75 ˜ 4 mm / 18 ˜ 12 AWG
  • Fine-stranded conductor: 0.25 ˜ 4 mm / 22 ˜ 12 AWG
  • Fine-stranded conductor with ferrule with plastic collar: 1 ˜ 2.5 mm / 18 ˜ 12 AWG
  • Fine-stranded conductor with ferrule, push-in termination, from: 1 ˜ 2.5 mm / 18 ˜ 12 AWG
  • Strip length: 10 ˜ 12 mm / 0.39 ˜ 0.47 inch
  • Total number of connection points: 1
  • Total number of potentials: 1
  • Number of levels: 1
  • Type of wiring: Front-entry wiring
  • Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.
Geometrical Data
  • Width: 5.2 mm / 0.205 inch
  • Height from upper-edge of DIN-35 rail: 32.5 mm / 1.28 inch
  • Depth: 48.5 mm / 1.909 inch
Mechanical Data
  • Design: horizontal
  • Type of mounting: DIN-35 rail
  • Marking level: Center/side marking
Material Data
  • Color: orange
  • Insulating material: Polyamide 66 (PA 66)
  • Fire load: 0.112 MJ
  • Weight: 5.038 g
Commercial data
  • Packaging type: BOX
  • Country of origin: CN
  • GTIN: 4050821145066
  • Customs Tariff No.: 85366990990
.

The WAGO 2022 X-COM S series carrier feed-through terminal block is an orange, 1-deck/level component with side and center marking slots, designed for a single feed-through pole (1P) and accommodating two wires (one push-in and one plug-in pin). It supports a nominal cross-section of 2.5mm² and is compatible with wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. The terminal block is rated for currents of 24A and 32A, featuring Push-in CAGE CLAMP spring connections and plug-in pin connections. It mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5.2mm, equivalent to model 20221202.
