1-conductor/1-pin double deck receptacle terminal block; Through/through terminal block; 2.5 mm²; N/N; without marker carrier; suitable for Ex i applications; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP; 2,50 mm²; blue.

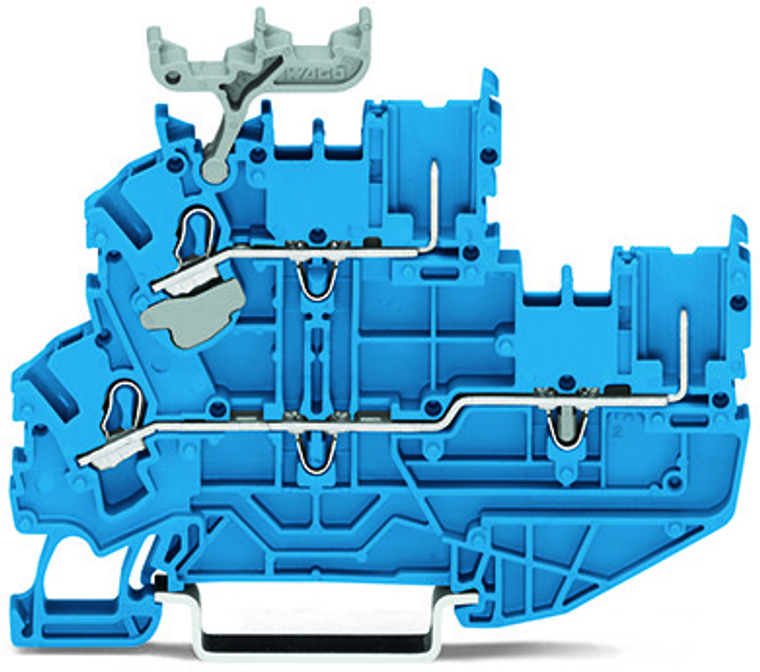

The WAGO 2022 X-COM S series neutral-through terminal block is a double-deck terminal block with side marking slots, designed for Ex I applications and marked "N/N." It features two neutral-through poles, accommodating two push-in and two plug-in pin connections, suitable for wire sizes ranging from 0.25mm² to 4mm² (#22AWG to #12AWG) with a nominal cross-section of 2.5mm². The terminal block supports a rated current of 24A or 28A and utilizes Push-in CAGE CLAMP spring connections along with plug-in pin connections. It is mounted on a DIN-35 rail and has a width of 5.2mm, equivalent to model 20222204.
- actuation type:
- Operating tool || Push-in
- approvals per:
- C22.2 No 158
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 51.3 mm / 2.02 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 4 mm / 22 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 2.5 mm / 18 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 2.5 mm / 22 14 AWG
- fire load:
- 0.244 MJ
- flammability class per ul94:
- V0
- height:
- 80.1 mm / 3.154 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 690 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- rated current:
- 24 A
- rated current 2:
- 28 A
- rated current csa use group c:
- 20 A
- rated current ul use group b:
- 20 A
- rated current ul use group c:
- 20 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group c:
- 600 V
- rated voltage ul use group b:
- 600 V
- rated voltage ul use group c:
- 600 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.25 4 mm / 22 12 AWG
- solid conductor push in termination:
- 0.75 4 mm / 18 12 AWG
- strip length:
- 10 12 mm / 0.39 0.47 inch
- weight:
- 11.490 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
