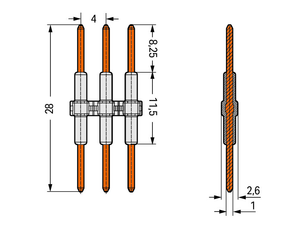

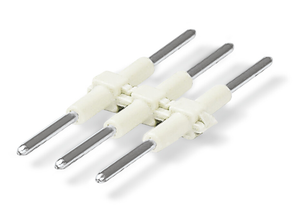

WAGO 2060-951/028-000 Board-to-Board Link; Pin spacing 4 mm; 1-pole; Length: 28 mm; white
Wago
$0.29
Board-to-Board LinkPin spacing 4 mm 1-pole, white Length: 28 mm
- Verbindungselement zum vereinfachten Aneinanderreihen von LED-Platinen
- Einfache Handhabung durch direktes Stecken und Trennen ohne Drckerbet¤tigung
The WAGO component equivalent to 2060951028000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is typically utilized in various industrial and automation systems, providing secure and maintenance-free connections. It is designed to meet high standards of performance and safety, ensuring optimal functionality in complex electrical networks. The WAGO component is recognized for its ease of installation and robust construction, making it a preferred choice for professionals in the field.
- color:
- White
- contact material:
- Copper alloy
- contact plating:
- Silver-plated
- country of origin sales organisation germany:
- CN
- depth:
- 28 mm / 1.102 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 2.6 mm / 0.102 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mating cycles max:
- 10
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 63 V
- number of mating cycles:
- Max. 10 connections/disconnections
- packaging type:
- Box
- pin spacing:
- 4 mm / 0.157 inch
- pole no:
- 1
- rated current:
- 0.375
- rated current ul 1977:
- 0.375
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul 1977:
- 250 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- NOTE: Only suitable for 2060-45x, not for 2060-40x.
- suitable:
- For SMD PCB terminal blocks (2060 Series)
- weight:
- 0.230 g
- width:
- 3.4 mm / 0.134 inch
