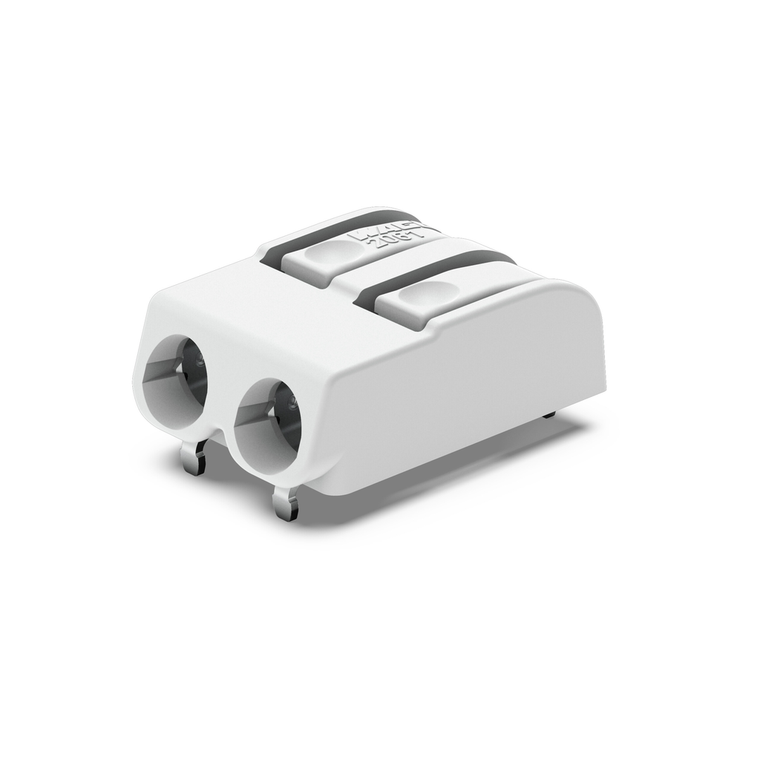

THR PCB terminal block; push-button; 1.5 mm²; Pin spacing 6 mm; 2-pole; Push-in CAGE CLAMP; in tape-and-reel packaging; 1,50 mm²; white.
The WAGO component equivalent to 20611642998404 is a specific part or model within the WAGO product line, which is known for its high-quality electrical interconnection and automation solutions. This component is likely used in various industrial and commercial applications, providing reliable performance and compatibility with other WAGO products. The exact specifications and features of this component would align with WAGO's standards for durability, efficiency, and ease of use, making it a suitable replacement or equivalent for the specified part number.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- White
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 15.2 mm / 0.598 inch
- fine stranded conductor:
- 0.5 1.5 mm / 20 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 0.75 mm
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 7.1 mm / 0.28 inch
- height from the surface:
- 5.6 mm / 0.22 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- note:
- Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, s
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THR
- pin spacing:
- 6 mm / 0.24 inch
- plated through hole diameter thr:
- 1.5 (+0.1) mm
- pole no:
- 2
- rated current:
- 17.5 A
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- recommendation:
- Recommendation for stencil:150 m material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter
- reel diameter of tape and reel packaging:
- 330 mm
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 1.2 x 0.35 mm
- solder pin length:
- 1.5 mm
- solid conductor:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 7 10 mm / 0.28 0.39 inch
- tape width:
- 24 mm
- weight:
- 1.047 g
- width:
- 11.7 mm / 0.461 inch
