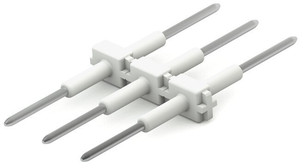

WAGO 2061-903 Board-to-Board Link, 3-Pole, 6 mm Pin Spacing, 30 mm Length, White
Wago
$0.84
Board-to-Board Link; Pin spacing 6 mm; 3-pole; Length: 30 mm; white.
The WAGO component equivalent to 2061903 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and compatibility with a range of wire sizes and types.
- color:
- White
- contact material:
- Copper alloy
- contact plating:
- Silver-plated
- country of origin sales organisation germany:
- CN
- depth:
- 30 mm / 1.181 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 2.5 mm / 0.098 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mating cycles max:
- 10
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- number of mating cycles:
- Max. 10 connections/disconnections
- packaging type:
- Box
- pin spacing:
- 6 mm / 0.236 inch
- pole no:
- 3
- rated current:
- 0.375
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- ratings per:
- IEC/EN 60664-1
- suitable:
- For SMD PCB terminal blocks (2061 Series)
- weight:
- 0.850 g
- width:
- 17.7 mm / 0.697 inch
