Wago

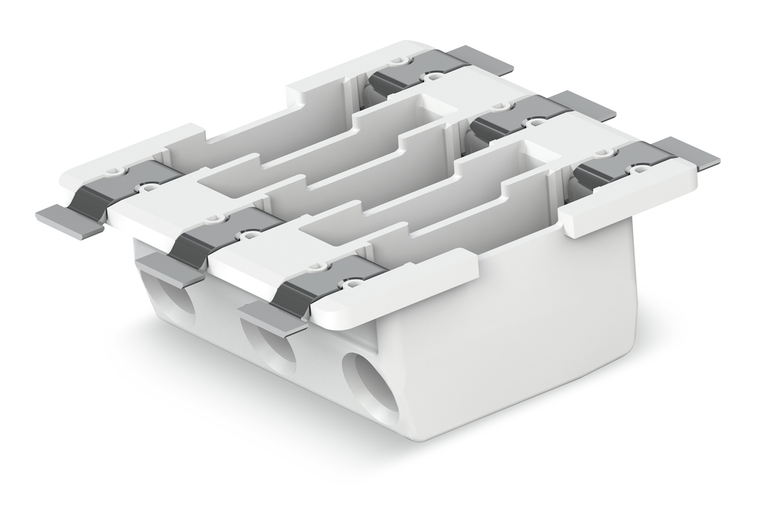

WAGO 2070-453/998-406 Pack of 318

SKU:

2070-453/998-406

UPC:

MPN:

2070-453/998-406

Condition:

New

actuation type:

Operating tool

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

White

conductor connection direction to pcb:

0

connection technology:

Push-in CAGE CLAMP

contact material:

Copper alloy

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

22.2 mm / 0.874 inch

design:

Without cover

fine stranded conductor:

0.2 0.75 mm / 24 18 AWG

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

7.45 mm / 0.293 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

mounting type:

Through-board

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

note:

Depending on reflow soldering temperatures and times, color deviations may occur. These deviations will have no impact on functionality.

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

SMD

pin spacing:

6.5 mm / 0.256 inch

pole no:

3

rated current:

0.375

rated current 2:

0.375

rated current ul 1977:

0.375

rated surge voltage ii 2:

4 kV

rated surge voltage ii 2 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 2 2:

4 kV

rated surge voltage iii 3:

4 kV

rated surge voltage iii 3 2:

4 kV

rated voltage ii 2 2:

500 V

rated voltage iii 2:

320 V

rated voltage iii 2 2:

320 V

rated voltage iii 3 2:

200 V

rated voltage ul 1977:

600 V

ratings note:

Electrical data for FR4 PCB type

ratings note 2:

Electrical data for metal-core PCBs

ratings per:

IEC/EN 60664-1 || IEC/EN 60664-1

reel diameter of tape and reel packaging:

330 mm

solder pin arrangement:

Over the entire terminal strip (in-line)

solid conductor:

0.2 0.75 mm / 24 18 AWG

strip length:

8 10 mm / 0.31 0.39 inch

tape width:

44 mm

weight:

1.810 g

width:

15.8 mm / 0.622 inch
