Wago

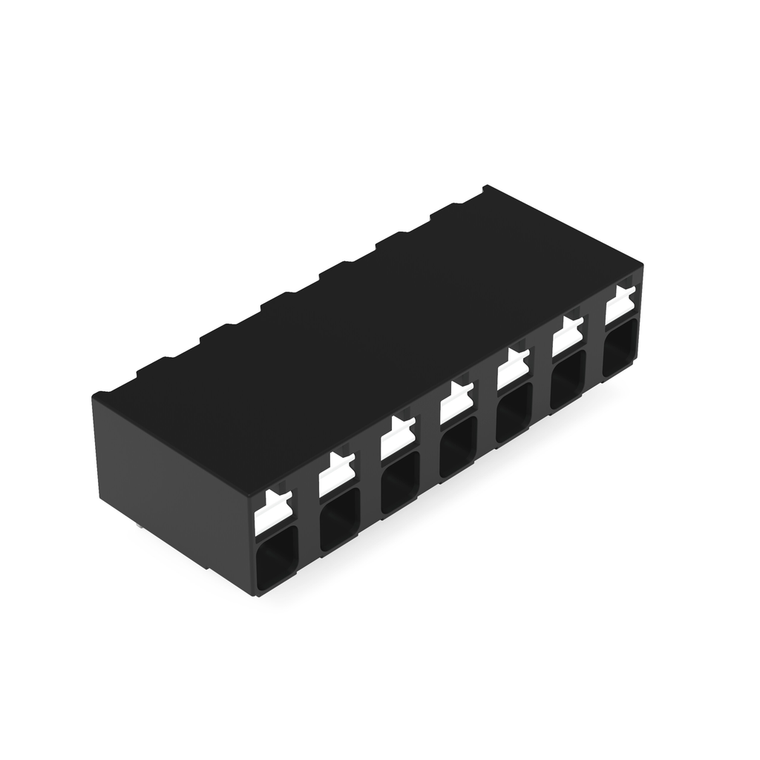

WAGO 2086-3227/300-000 Pack of 96

SKU:

2086-3227/300-000

UPC:

MPN:

2086-3227/300-000

Condition:

New

actuation type:

Push-button

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Black

conductor connection direction to pcb:

0

connection technology:

Push-in CAGE CLAMP«

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

13.6 mm / 0.535 inch

fine stranded conductor:

0.14 ƒƒ‡ª 1.5 mm / 24 ƒƒ‡ª 16 AWG

fine stranded conductor with insulated ferrule:

0.25 ƒƒ‡ª 0.75 mm

fine stranded conductor with uninsulated ferrule:

0.25 ƒƒ‡ª 1.5 mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

9.3 mm / 0.366 inch

height from the surface:

7.8 mm / 0.307 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2

limit temperature range:

-60 ƒƒ‡ª +105 C

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

500 V

number of solder pins per potential:

1

pcb contact:

THR

pin spacing:

5 mm / 0.197 inch

plated through hole diameter thr:

1 (+0.1) mm

pole no:

7

rated current:

17.5 A

rated current csa use group b:

0.416666666666667

rated current csa use group d:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group c:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

6 kV

rated surge voltage iii 2:

6 kV

rated surge voltage iii 3:

6 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

630 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (staggered)

solder pin dimensions:

0.3 x 0.8 mm

solder pin length:

1.5 mm

solid conductor:

0.14 ƒƒ‡ª 1.5 mm / 24 ƒƒ‡ª 16 AWG

strip length:

8 ƒƒ‡ª 9 mm / 0.31 ƒƒ‡ª 0.35 inch

weight:

4.093 g

width:

34.2 mm / 1.346 inch
