Wago

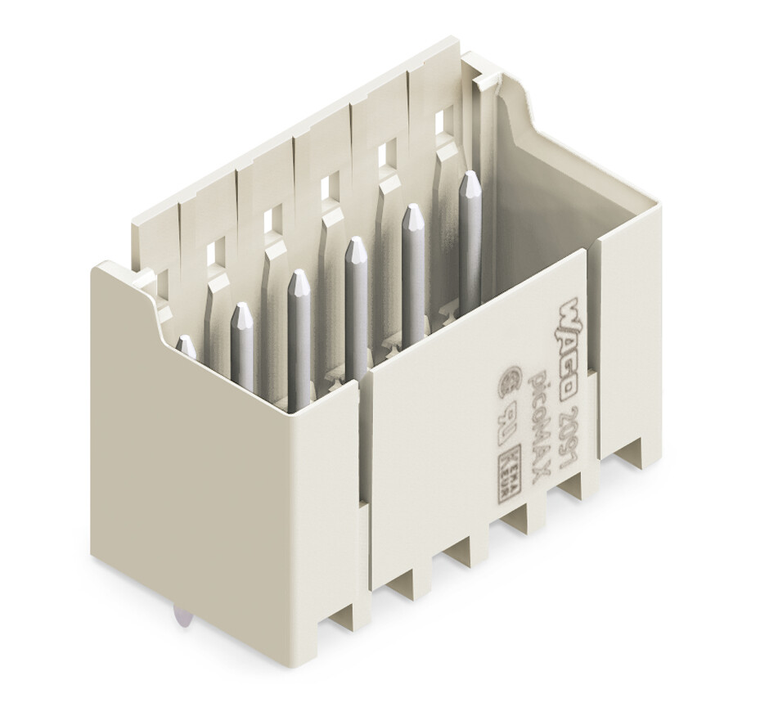

WAGO 2091-1410/200-000 THR male header; 1.0 mm Ø solder pin; straight; Pin spacing 3.5 mm; 10-pole; light gray

SKU:

2091-1410/200-000

UPC:

MPN:

51253763

Condition:

New

approvals per:

UL 1059

color:

Light gray

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

DE

depth:

12.4 mm / 0.488 inch

fire load:

0.064 MJ

flammability class per ul94:

V0

height:

19.9 mm / 0.783 inch

height from the surface:

17.5 mm / 0.689 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Locking latch

material group:

I

mating direction to the pcb:

90

mismating protection:

No

nominal voltage ii 2:

320 V

nominal voltage iii 3:

160 V

packaging type:

Box

pcb contact:

THR

pin spacing:

3.5 mm / 0.138 inch

plated through hole diameter thr:

1.2 (+0.1) mm

pole no:

10

rated current:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage iii 2:

160 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en

solder pin diameter:

1 mm

solder pin length:

2.4 mm

weight:

3.190 g

width:

37 mm / 1.457 inch
