Wago 2092-1306

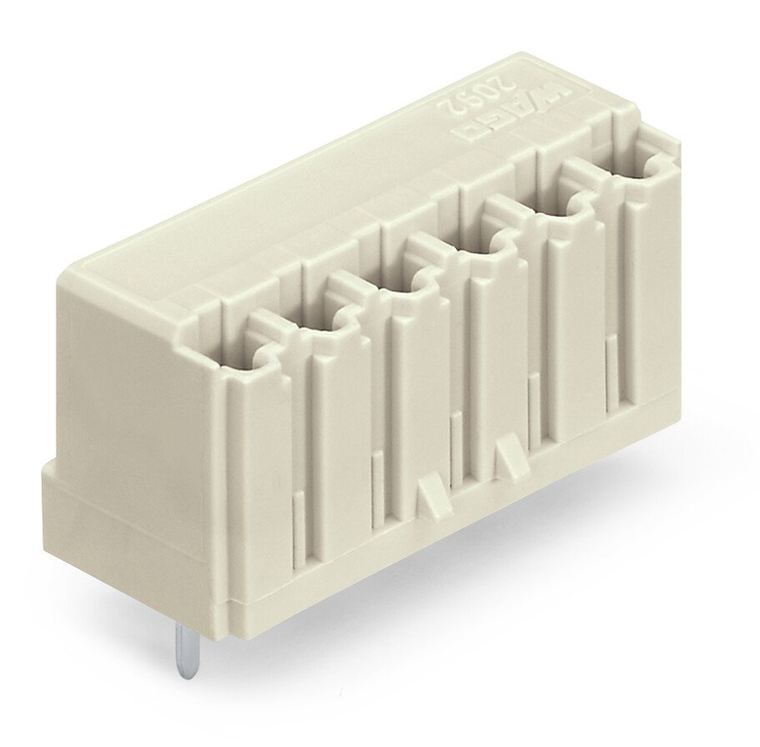

WAGO 2092-1306 THT female header; 0.4 x 1.3 mm solder pin straight, light gray

Wago
SKU:
20921306
$4.68
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Description Female header with straight solder pins; 6-pole; Pin spacing 5 mm / 0.197 in
Remarks Item description:
  • Touch-proof PCB outputs
  • Easy-to-identify PCB inputs and outputs
  • Coding option available



Item properties

Miscellaneous

Name Value Unit
No. of poles  6
Pin spacing  5 mm (0.197 in)
Color  light gray
Ratings per  IEC/EN 60664-1
Rated voltage (III / 3) [V]  250  V
Rated impulse voltage (III / 3) [kV]  4  kV
Rated voltage (III/2) [V]  320  V
Rated impulse voltage (III / 2) [kV]  4  kV
Rated voltage (II / 2) [V]  630  V
Rated impulse voltage (II / 2) [kV]  4  kV
Rated current [A]  16  A
Legend for ratings  (III / 2) Overvoltage category III / Pollution degree 2
Number of levels  1
Solder pin length [mm]  3.6  mm
Drilled hole diameter (tolerance) [mm]  1.5(+ 0.1)  mm
Material group  I
Insulating material  Polyphthalamide (PPA GF)
Flammability class per UL94  V0
Limit temperature range  -60 100 C
Contact material  Copper alloy
Contact plating  tin-plated
Fire load [MJ]  0.138  MJ
Weight [g]  5.62  g
Width  30 mm / 1.181 Inch
Height  19.8 mm / 0.78 Inch
Height from the surface  16.2 mm / 0.638 Inch
Depth  13.6 mm / 0.535 Inch
Pin spacing from [mm]  5  mm
.

The WAGO component equivalent to 20921306 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and performance within various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.

Additional Information
approvals per:
UL 1059
color:
Light gray
connector connection type:
For PCB
contact material:
Copper alloy
contact plating:
Tin-plated
contact type pluggable connector:
Female connector/socket
country of origin sales organisation germany:
DE
depth:
13.6 mm / 0.535 inch
drilled hole diameter with tolerance:
1.5 (+0.1) mm
fire load:
0.138 MJ
flammability class per ul94:
V0
height:
19.8 mm / 0.78 inch
height from the surface:
16.2 mm / 0.638 inch
insulation material:
Polyphthalamide (PPA GF)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +100 C
locking of plug in connection:
Without
material group:
I
mating direction to the pcb:
90
mismating protection:
No
nominal voltage ii 2:
630 V
nominal voltage iii 3:
250 V
packaging type:
Box
pcb contact:
THT
pin spacing:
5 mm / 0.197 inch
pole no:
6
rated current:
16 A
rated current ul use group b:
15 A
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
4 kV
rated surge voltage iii 2:
4 kV
rated surge voltage iii 3:
4 kV
rated voltage iii 2:
320 V
rated voltage ul use group b:
300 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
safety information 1:
The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
solder pin dimensions:
0.4 x 1.3 mm
solder pin length:
3.6 mm
weight:
5.620 g
width:
30 mm / 1.181 inch
