Wago

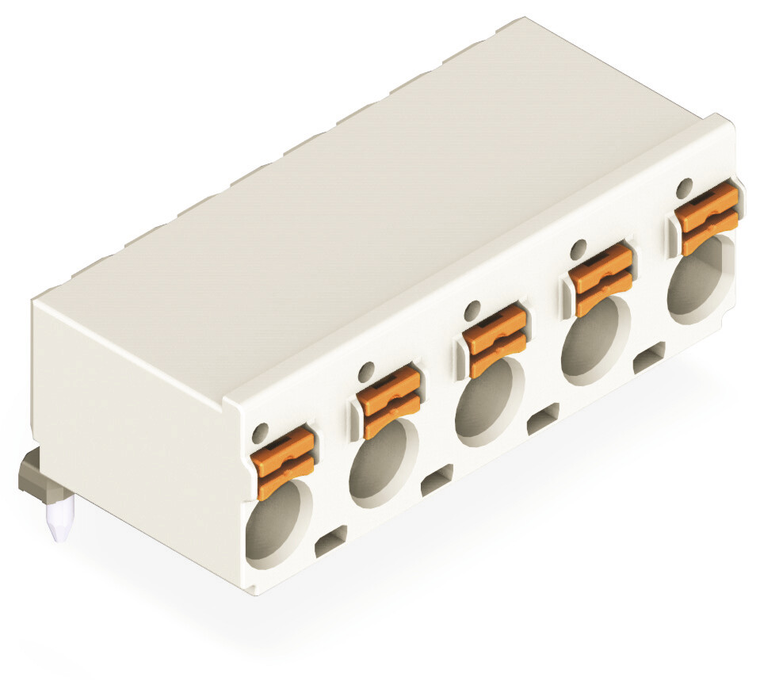

WAGO 2092-3375 1-conductor THT female header; 1.4 mm Ø solder pin; angled; 2.5 mm²; Pin spacing 7.5 mm; 5-pole; 2,50 mm²; light gray

SKU:

2092-3375

UPC:

MPN:

20923375

Condition:

New

actuation type:

Push-button

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

conductor connection direction to pcb:

0

connection technology:

Push-in CAGE CLAMP

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

16.2 mm / 0.638 inch

drilled hole diameter with tolerance:

1.6 (+0.1) mm

fine stranded conductor:

0.2 2.5 mm / 24 12 AWG

fine stranded conductor with insulated ferrule:

0.25 1.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 2.5 mm

fire load:

0.012 MJ

flammability class per ul94:

V0

height:

13.4 mm / 0.528 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

0

mismating protection:

No

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

400 V

packaging type:

Box

pcb contact:

THT

pin spacing:

7.5 mm / 0.295 inch

pole no:

5

rated current:

16 A

rated current ul use group b:

15 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

6 kV

rated surge voltage iii 2:

6 kV

rated surge voltage iii 3:

6 kV

rated voltage iii 2:

630 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en

solder pin diameter:

1.4 mm

solder pin length:

3.6 mm

solid conductor:

0.2 2.5 mm / 24 12 AWG

strip length:

9 10 mm / 0.35 0.39 inch

weight:

7.370 g

width:

35 mm / 1.378 inch
