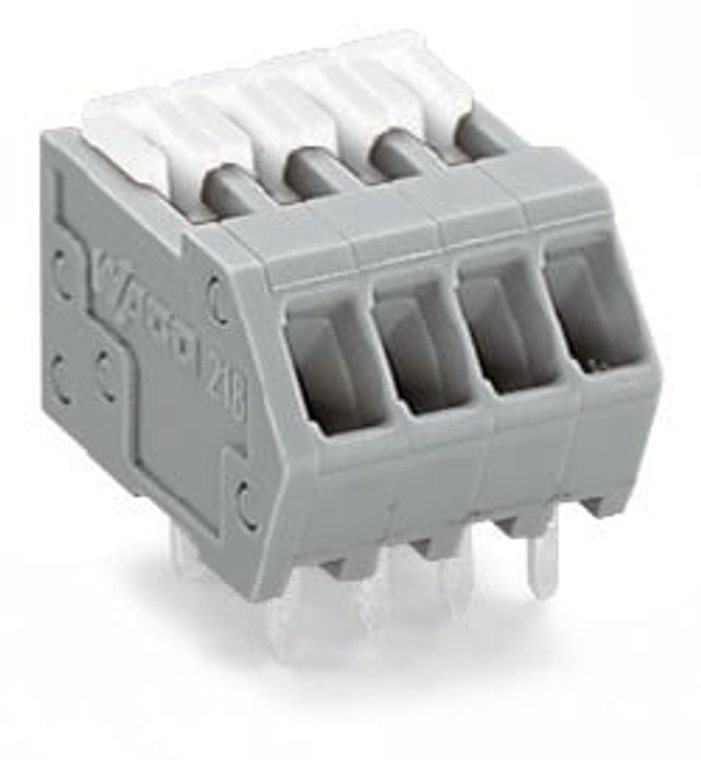

WAGO 218-119 PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.5 mm; 19-pole; CAGE CLAMP; 0,50 mm²; gray
Wago
$13.10
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 218-119 PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.5 mm; 19-pole; CAGE CLAMP; 0,50 mm²; gray
PCB terminal block; Locking slides; 0.5 mm; Pin spacing 2.5 mm; 19-pole; CAGE CLAMP.
The WAGO component equivalent to 218119 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is designed to provide secure and maintenance-free connections, often utilized in various industrial and automation settings. It ensures optimal performance and safety, adhering to high standards and specifications required in demanding environments. The equivalent part offers similar functionality and compatibility, making it a suitable replacement or alternative for the original 218119 component.
- actuation type:
- Slider
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 40
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 13 mm / 0.512 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 0.5 mm / 28 20 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 mm
- fire load:
- 0.307 MJ
- flammability class per ul94:
- V0
- height:
- 10.9 mm / 0.429 inch
- height from the surface:
- 8.1 mm / 0.319 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 80 V
- note conductor cross section:
- Terminating 0.75 mm/18 AWG conductors is possible: however insulation diameter allows only every other clamping unit to be terminated with this conductor size.
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 2.5 mm / 0.098 inch
- pole no:
- 19
- rated current:
- 0.25
- rated current csa use group b:
- 0.166666666666667
- rated current ul use group b:
- 0.166666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.5 x 0.75 mm
- solder pin length:
- 2.8 mm
- solid conductor:
- 0.08 0.5 mm / 28 20 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 6.284 g
- width:
- 49 mm / 1.929 inch
