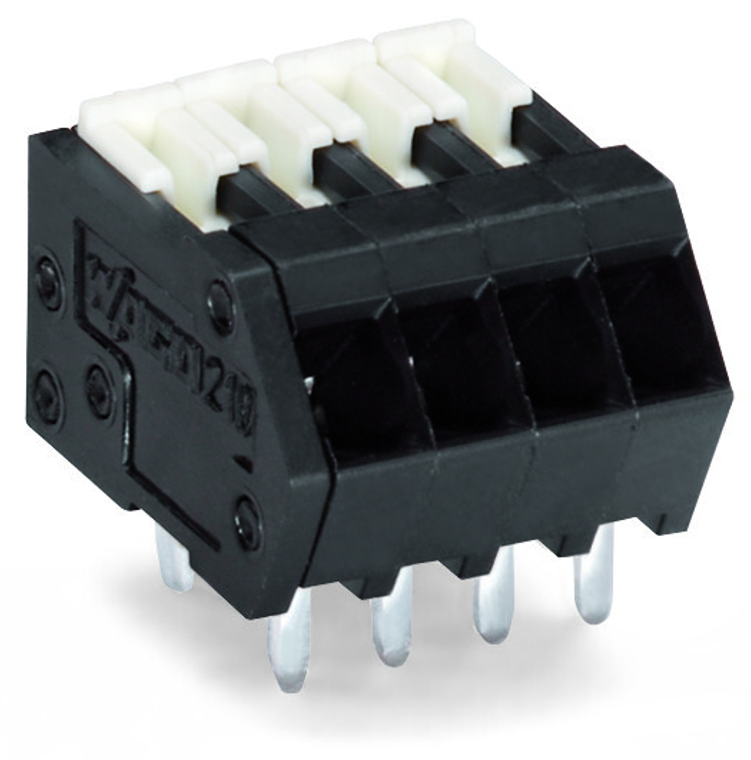

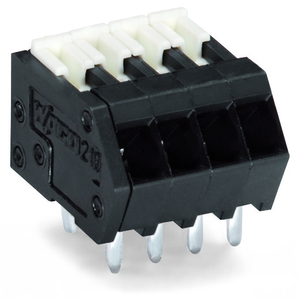

WAGO 218-504/000-604 THR PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.54 mm; 4-pole; CAGE CLAMP; 0,50 mm²; black
Wago
$3.54
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 218-504/000-604 THR PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.54 mm; 4-pole; CAGE CLAMP; 0,50 mm²; black
THR PCB terminal block; Locking slides; 0.5 mm²; Pin spacing 2.54 mm; 4-pole; CAGE CLAMP; 0,50 mm²; black.
The WAGO component equivalent to 218504000604 is a specific part used in electrical and electronic applications. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various systems. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of applications and meets the necessary standards and specifications required for optimal performance.
- actuation type:
- Slider
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Black
- conductor connection direction to pcb:
- 40
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 13 mm / 0.512 inch
- fine stranded conductor:
- 0.08 0.5 mm / 28 20 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 mm
- fire load:
- 0.019 MJ
- flammability class per ul94:
- V2
- height:
- 10.9 mm / 0.429 inch
- height from the surface:
- 8.1 mm / 0.319 inch
- insulation material:
- Polyamide (PA46)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- IIIa
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 32 V
- note conductor cross section:
- Terminating 0.75 mm/18 AWG conductors is possible: however insulation diameter allows only every other clamping unit to be terminated with this conductor size.
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THR
- pin spacing:
- 2.54 mm / 0.1 inch
- plated through hole diameter thr:
- 1.1 (+0.1) mm
- pole no:
- 4
- rated current:
- 0.25
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.5 x 0.75 mm
- solder pin length:
- 2.8 mm
- solid conductor:
- 0.08 0.5 mm / 28 20 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 1.376 g
- width:
- 11.66 mm / 0.459 inch
