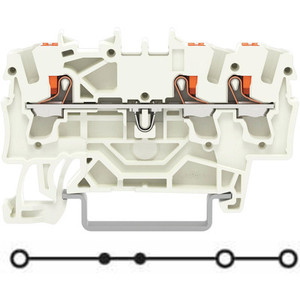

WAGO 2202-1812

(No reviews yet) Write a Review

Write a Review

Wago

WAGO 2202-1812

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

2202-1812

UPC:

MPN:

2202-1812

Condition:

New

actuation type:

Push-in || Push-button

approvals per:

UL 1059

color:

Orange

connectable conductor materials:

Copper

connection technology:

Push-in CAGE CLAMP®

CONTINUOUS OPERATING TEMPERATURE:

-60 ƒƒ¢€¦ +105 ƒƒ‚°C

COUNTRY OF ORIGIN VKORG GERMANY:

DE

CUSTOMS TARIFF NUMBER VKORG GERMANY:

85369095000

DEPTH FROM UPPER EDGE OF DIN RAIL:

57.6 mm / 2.268 inches

FINE STRANDED CONDUCTOR:

0.25 ƒƒ¢€¦ 4 mmƒƒ‚² / 22 ƒƒ¢€¦ 12 AWG

FINE STRANDED CONDUCTOR WITH FERRULE PUSH IN TERMINATION:

1 ƒƒ¢€¦ 2.5 mmƒƒ‚² / 18 ƒƒ¢€¦ 14 AWG

FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:

0.25 ƒƒ¢€¦ 2.5 mmƒƒ‚² / 22 ƒƒ¢€¦ 14 AWG

FIRE LOAD:

0.076 MJ

FLAMMABILITY CLASS PER UL94:

V0

HEIGHT:

87.5 mm / 3.445 inches

INSULATION MATERIAL:

Polyamide (PA66)

LEGEND RATINGS:

(III / 3) ƒƒ¢‰™ Overvoltage category III / Pollution degree 3

MARKING LEVEL:

Center/side marking

MATERIAL GROUP:

I

MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:

MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=

MISMATING PROTECTION:

MOUNTING NOTE=

MOUNTING TYPE:

DIN-35 rail

NOMINAL CROSS SECTION:

2.5 mmƒƒ‚²

NOMINAL VOLTAGE III 3:

250 V

NOTE CONDUCTOR CROSS SECTION:

Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.

NOTE MATERIAL DATA:

Information on material data can be found here

OPERATION STATUS INDICATOR:

None

POWER LOSS MAX PL MAX NOTE:

When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN 60947-7-3/VDE 0611-6 at 23ƒƒ‚°C. The temperature rise of the terminal block must be checked

POWER LOSS PL 3 MAX:

1.6 W

POWER LOSS PL MAX OVERLOAD AND SHORT CIRCUIT PROTECTION GROUP ARRANGEMENT:

1.6 W

POWER LOSS PL MAX OVERLOAD AND SHORT CIRCUIT PROTECTION INDIVIDUAL ARRANGEMENT:

1.6 W

POWER LOSS PL MAX SHORT CIRCUIT PROTECTION GROUP ARRANGEMENT:

1.6 W

PROCESSING TEMPERATURE:

-35 ƒƒ¢€¦ +85 ƒƒ‚°C

PRODUCT GROUP CODE:

36

RATED CURRENT:

6.3 A

RATED CURRENT CSA USE GROUP B:

0.416666666666667

RATED CURRENT CSA USE GROUP C:

0.416666666666667

RATED CURRENT CSA USE GROUP D:

0.416666666666667

RATED CURRENT UL USE GROUP B:

0.416666666666667

RATED CURRENT UL USE GROUP C:

0.416666666666667

RATED IMPULSE VOLTAGE III 3:

6 kV

RATED VOLTAGE CSA USE GROUP B:

250 V

RATED VOLTAGE CSA USE GROUP C:

250 V

RATED VOLTAGE CSA USE GROUP D:

250 V

RATED VOLTAGE EN EX E II:

275 V

RATED VOLTAGE UL USE GROUP B:

250 V

RATED VOLTAGE UL USE GROUP C:

250 V

RATED VOLTAGE UL USE GROUP D:

250 V

RATINGS NOTE:

Electrical ratings are given by the fuse.

RATINGS PER:

IEC/EN 60947-7-3

REFERENCE HAZARDOUS AREAS:

See Downloads ƒƒ¢€“ Documentation ƒƒ¢€“ Additional Information: Technical Section

SOLID CONDUCTOR:

0.25 ƒƒ¢€¦ 4 mmƒƒ‚² / 22 ƒƒ¢€¦ 12 AWG

SOLID CONDUCTOR PUSH IN TERMINATION:

0.75 ƒƒ¢€¦ 4 mmƒƒ‚² / 18 ƒƒ¢€¦ 12 AWG

STRIP LENGTH:

10 ƒƒ¢€¦ 12 mm / 0.39 ƒƒ¢€¦ 0.47 inches

WEIGHT:

16.594 g

WIDTH:

6.2 mm / 0.244 inches

WIRING DIRECTION:

Front-entry wiring
