Description

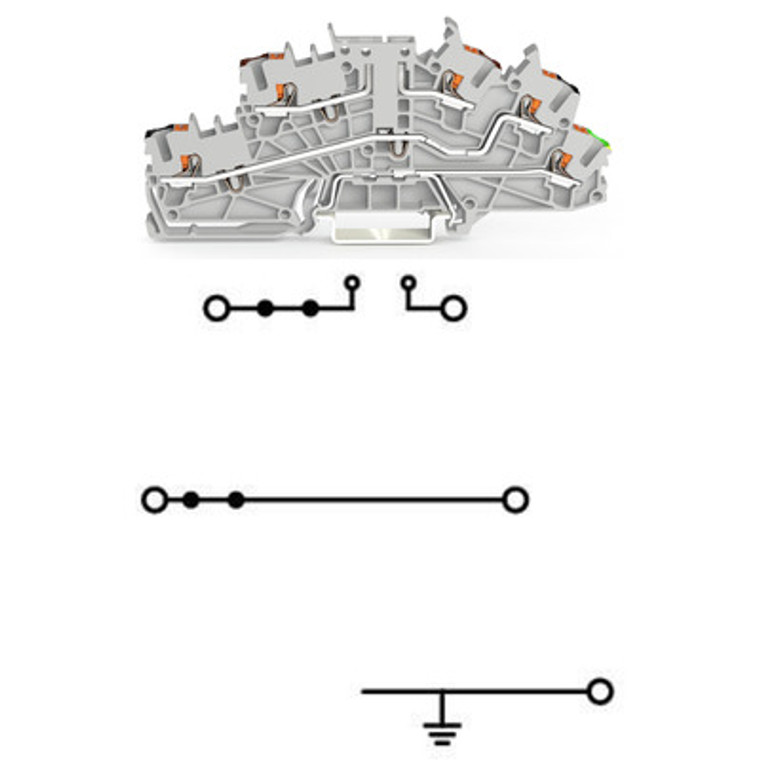

The WAGO 2203 series is a multilevel installation carrier feed-through and ground terminal block featuring three decks, pluggable disconnects, and buttons on both sides. It includes side and center marking slots with "P1/P2/PE" markings and is gray in color. The terminal block supports two feed-through poles and a protective earth, accommodating five wires (two push-in and three push-in) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. It has a rated current of 22A or 27A and utilizes Push-in CAGE CLAMP spring connections for secure wiring. The unit is designed for DIN-35 rail mounting and has a width of 5.2mm, equivalent to model 22036660.
