WAGO 2204-1409

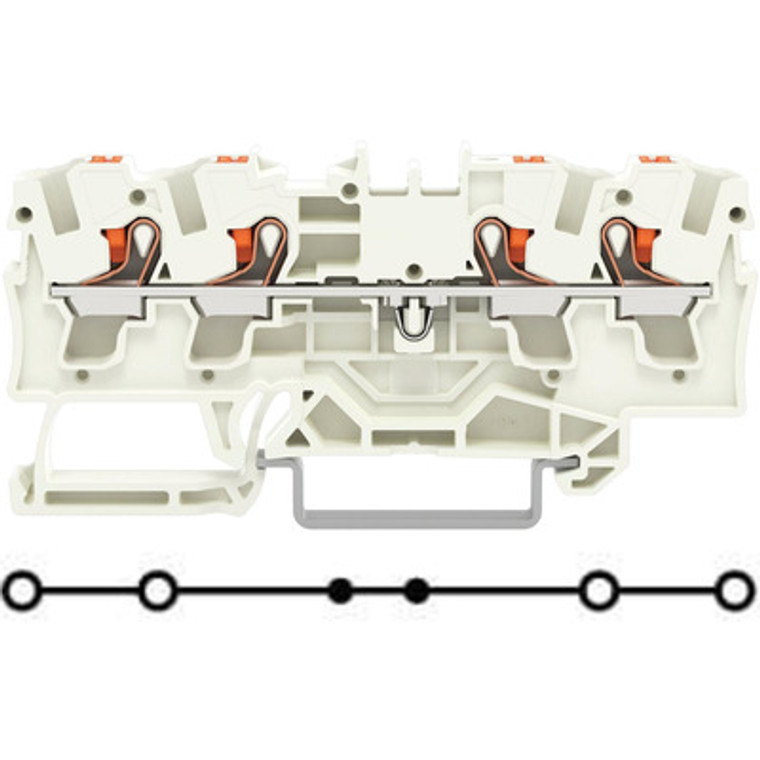

The WAGO 2204 TOPJOB S series feed-through terminal block is a light gray, 1-deck/level terminal block with side and center marking slots, suitable for Ex e II applications. It features a test port and accommodates 1 feed-through pole with 4 wires (2 push-in + 2 push-in) with a nominal cross-section of 4mm², suitable for wire sizes ranging from 0.5mm² to 6mm² or #20AWG to #10AWG. The terminal block supports a rated current of 32A or 41A and utilizes Push-in CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 6.2mm, equivalent to model 22041409.
