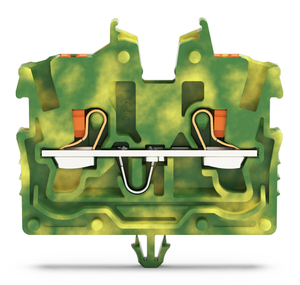

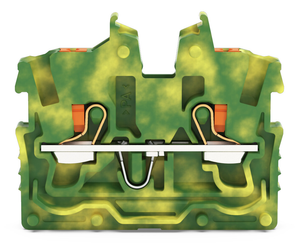

WAGO 2250-307 2-conductor miniature through tb with push-button 1 mm², green-yellow
2-conductor miniature through terminal block; with push-button; 1 mm²; End terminal block with mounting flange; side and center marking; with test port; Push-in CAGE CLAMP; 1,00 mm²; green-yellow.
The WAGO 2250 TOPJOB S series is a green-yellow miniature end terminal block designed for grounding/earthing applications, suitable for Ex e II environments. It features a single deck with side and center marking slots, a test port, and supports two wires with push-in CAGE CLAMP spring connections. The terminal block accommodates a nominal cross-section of 1mm² and wire sizes ranging from 0.14mm² to 1.5mm² or #24AWG to #16AWG. It is designed for flange or surface mounting and is equivalent to the 2250307 model.
- actuation type:
- Push-in || Push-button || Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 33.2 mm / 1.307 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.14 1.5 mm / 24 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.5 0.75 mm / 20 18 AWG
- fine stranded conductor with insulated ferrule:
- 0.14 0.75 mm / 24 18 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 27.2 mm / 1.071 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- Mounting flange
- nominal cross section:
- 1 mm
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- packaging type:
- Box
- solid conductor:
- 0.14 1.5 mm / 24 16 AWG
- solid conductor push in termination:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 9 11 mm / 0.35 0.43 inch
- weight:
- 2.354 g
- width:
- 3.5 mm / 0.138 inch
- wiring direction:
- Front-entry wiring
