Wago 231-126

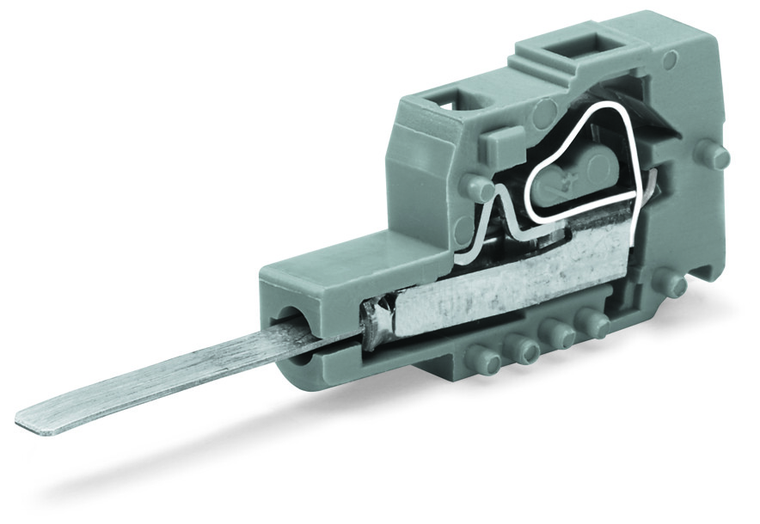

WAGO 231-126 Testing plug module with contact stud; for 280, 736, 737, 738, 780 Series; Pin spacing 5 mm / 0.197 in; 2,50 mm²; gray

Wago
SKU:
51168226
$5.60
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Testing plug module with contact stud; for 280, 736, 737, 738, 780 Series; Pin spacing 5 mm / 0.197 in; 2,50 mm²; gray.

The WAGO component equivalent to 231126 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is typically used in industrial, commercial, and residential electrical installations, offering ease of use and durability. The equivalent model ensures compatibility with existing systems and meets the necessary standards for performance and reliability.

Additional Information
application:
Testing without connected conductor
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Gray
connection technology:
CAGE CLAMP
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
country of origin sales organisation germany:
DE
depth:
43.45 mm / 1.711 inch
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fire load:
0.024 MJ
flammability class per ul94:
V0
height:
14.3 mm / 0.563 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +105 C
material group:
I
packaging type:
Box
pin spacing:
5 mm / 0.197 inch
rated current:
0.5 A
rated surge voltage iii 2:
2.5 kV
rated voltage iii 2:
250 V
ratings per:
IEC/EN 60664-1
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
12 13 mm / 0.47 0.51 inch
suitable:
For 280, 736, 737, 738, 780 Series
test contact length:
17 mm
weight:
2.100 g
width:
5 mm / 0.197 inch
