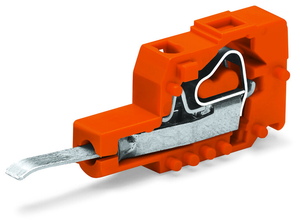

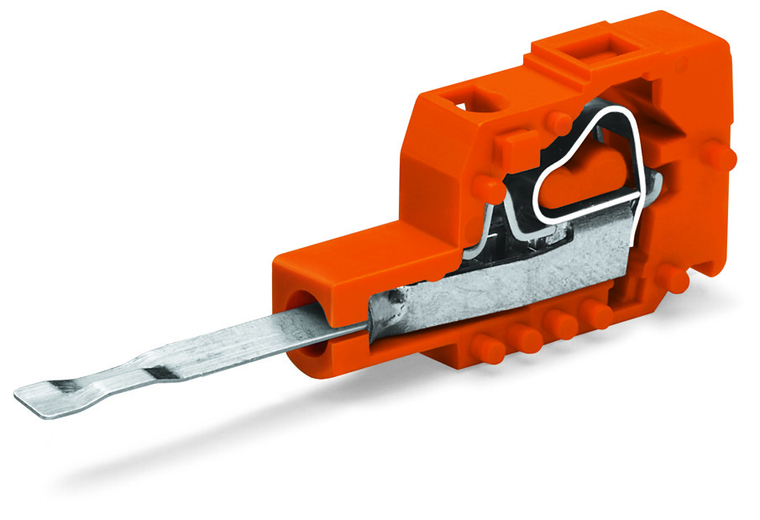

WAGO 231-455

(No reviews yet) Write a Review

Write a Review

WAGO 231-455

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

231-455

UPC:

MPN:

Condition:

New

application:

Testing wired terminal blocks with 0.75 1.5 mm f-st or 0.5 mm sol. conductors

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Orange

connection technology:

CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

DE

depth:

44.45 mm / 1.75 inch

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fire load:

0.024 MJ

flammability class per ul94:

V0

height:

14.3 mm / 0.563 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

packaging type:

Box

pin spacing:

5.08 mm / 0.2 inch

rated current:

0.5 A

rated surge voltage iii 2:

2.5 kV

rated voltage iii 2:

250 V

ratings per:

IEC/EN 60664-1

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

12 13 mm / 0.47 0.51 inch

suitable:

For 736, 737, 738 Series

test contact length:

18 mm

weight:

1.850 g

width:

5.08 mm / 0.2 inch
