Wago

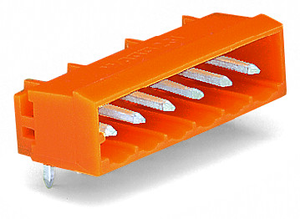

WAGO 231-537/001-000

SKU:

231-537/001-000

UPC:

MPN:

231-537/001-000

Condition:

New

approvals per:

CSA

color:

Orange

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

PL

depth:

12 mm / 0.472 inch

drilled hole diameter with tolerance:

1.4 (+0.1) mm

fire load:

0.042 MJ

flammability class per ul94:

V0

height:

12.2 mm / 0.48 inch

height from the surface:

8.4 mm / 0.331 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

0

mismating protection:

No

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

5.08 mm / 0.2 inch

pole no:

7

rated current:

0

rated current csa use group b:

0.416666666666667

rated current csa use group d:

0.416666666666667

rated current ul 1977:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solder pin arrangement:

Over the entire male connector (in-line)

solder pin dimensions:

1 x 1 mm

solder pin length:

3.8 mm

weight:

2.296 g

width:

38.68 mm / 1.523 inch
