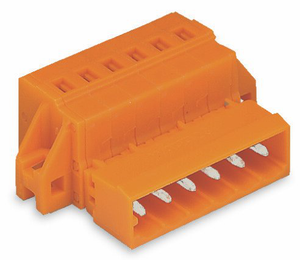

WAGO 231-635/019-000 1-conductor male connector; clamping collar; 2.5 mm²; Pin spacing 5.08 mm; 5-pole; 2,50 mm²; orange
1-conductor male connector; CAGE CLAMP; 2.5 mm²; Pin spacing 5.08 mm; 5-pole; clamping collar; 2,50 mm²; orange.
The WAGO component equivalent to 231635019000 is a specific part used in electrical and electronic applications. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various systems. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of applications and meets stringent standards for performance and safety.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor entry direction to mating direction:
- 0
- connection technology:
- CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 27.5 mm / 1.083 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.159 MJ
- flammability class per ul94:
- V0
- height:
- 14.3 mm / 0.563 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- No
- mounting type:
- Mounting flange || Feed-through mounting || Panel mounting
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- packaging type:
- Box
- pin spacing:
- 5.08 mm / 0.2 inch
- pole no:
- 5
- rated current:
- 0
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 8.830 g
- width:
- 40.2 mm / 1.583 inch
