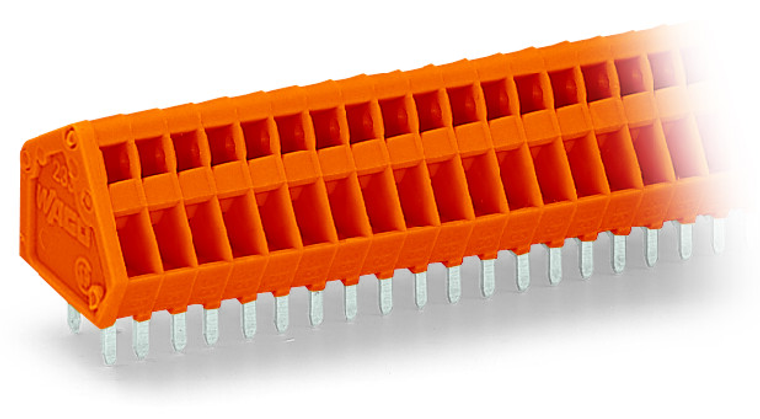

WAGO 233-416 Pack of 25
Wago
$181.25
PCB terminal block; 0.5 mm; Pin spacing 2.54 mm; 16-pole; CAGE CLAMPp>
- Compact terminal strips with CAGE CLAMP<sup></sup> connection and screwdriver actuation parallel or perpendicular to conductor entry
- Double solder pins for high mechanical stability
- Custom color combinations
The WAGO component equivalent to 233416 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- actuation type:
- Push-in || Operating tool
- approvals per:
- C22.2 No 158
- type of fuse:
- Cylindrical fuse 5 x 20 mm
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP«
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 57.2 mm / 2.252 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 ª 2.5 mm / 18 ª 14 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 2.5 mm / 22 ª 14 AWG
- fire load:
- 0.282 MJ
- flammability class per ul94:
- V0
- height:
- 66.1 mm / 2.602 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 2.5 mm
- nominal voltage iii 3:
- 250 V
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- note on rated current 1:
- Leakage current in case of a blown fuse: LED 2 mA
- operation status indicator:
- 230 V
- packaging type:
- Box
- rated current:
- 6.3 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group c:
- 0.416666666666667
- rated current ex e ii:
- 6.3 A
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group c:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- rated voltage en ex e ii:
- 230 V
- rated voltage ul use group b:
- 250 V
- rated voltage ul use group c:
- 250 V
- rated voltage ul use group d:
- 250 V
- ratings note:
- Electrical ratings are given by the fuse and blown fuse indication.
- ratings per:
- IEC/EN 60947-7-3
- solid conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- solid conductor push in termination:
- 0.75 ª 4 mm / 18 ª 12 AWG
- strip length:
- 10 ª 12 mm / 0.39 ª 0.47 inch
- weight:
- 13.650 g
- width:
- 6.2 mm / 0.244 inch
- wiring direction:
- Front-entry wiring
