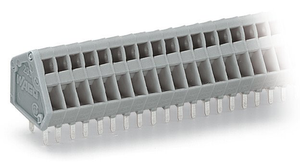

PCB terminal block; Push-button; 0.5 mm; Pin spacing 2.54 mm; 36-pole; CAGE CLAMPp>
- Compact PCB terminal strips with CAGE CLAMP<sup></sup> connection and screwdriver actuation<br/>parallel or perpendicular to conductor entry
- Double solder pins for high mechanical
- Custom color combinations
The WAGO component equivalent to 233536 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and communication within various industrial applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor connection direction to pcb:
- 30
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 13.9 mm / 0.547 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 0.5 mm / 28 20 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 mm
- fire load:
- 0.256 MJ
- flammability class per ul94:
- V0
- height:
- 19.5 mm / 0.768 inch
- height from the surface:
- 15.5 mm / 0.61 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 63 V
- note conductor cross section:
- Terminating 0.75 mm/18 AWG conductors is possible: however insulation diameter allows only every other clamping unit to be terminated with this conductor size.
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 2.54 mm / 0.1 inch
- pole no:
- 36
- rated current:
- 0.25
- rated current csa use group b:
- 0.166666666666667
- rated current ul use group b:
- 0.166666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.5 x 0.75 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 0.5 mm / 28 20 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 14.414 g
- width:
- 93.74 mm / 3.691 inch
