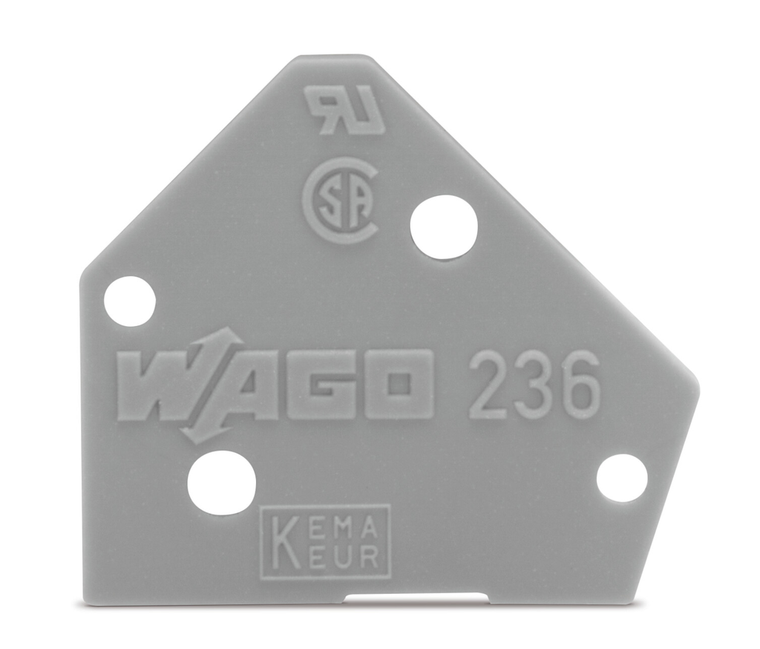

WAGO 236-300 Pack of 100
Wago
$12.70
End plate; 1 mm thick; snap-fit type.
The WAGO component equivalent to 236300 is a specific part or module within the WAGO product range, known for its high-quality electrical interconnection and automation solutions. This component is designed to meet specific technical requirements and standards, ensuring reliable performance in various applications. It is part of WAGO's extensive catalog, which includes a wide array of products such as terminal blocks, connectors, and automation technology, all aimed at providing efficient and secure electrical connections and control systems.
- approvals per:
- CSA
- color:
- Light gray
- connector connection type:
- For front-entry rail-mount terminal block
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 11.4 mm / 0.449 inch
- fire load:
- 0.022 MJ
- flammability class per ul94:
- V0
- height:
- 25.9 mm / 1.02 inch
- height from the surface:
- 12 mm / 0.472 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +85 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- Yes
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 2
- rated current:
- 16 A
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- weight:
- 1.353 g
- width:
- 13.2 mm / 0.52 inch
