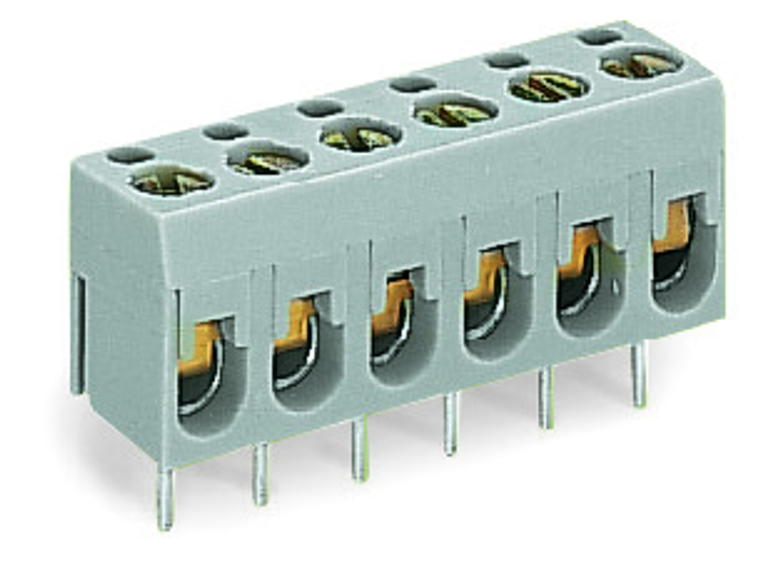

PCB terminal block2.5 mm Pin spacing 5 mm 6-pole, gray
Electrical Data
- Rated voltage (III / 2): 250 V
- Rated impulse voltage (III / 2): 2.5 kV
- Rated current: 16 A
- Legend (ratings): (III / 2) Overvoltage category III / Pollution degree 2
Connection Data
- Connection technology: Screw clamp connection
- Actuation type: Operating tool
- Solid conductor: 0.5 2.5 mm / 20 14 AWG
- Fine-stranded conductor: 0.5 2.5 mm / 20 14 AWG
- Strip length: 5 7 mm / 0.2 0.28 inch
- Conductor entry angle to the PCB: 0
- No. of poles: 6
- Total number of connection points: 6
- Total number of potentials: 6
- Number of connection types: 1
- Number of levels: 1
Geometrical Data
- Pin spacing: 5/5.08 mm / 0.197/0.2 inch
- Width: 5 mm / 0.197 inch
- Height from the surface: 11 mm / 0.433 inch
- Depth: 9 mm / 0.354 inch
PCB contact
- PCB contact: THT
- Solder pin arrangement: over the entire terminal strip, in line
- Number of solder pins per potential: 1
Material Data
- Color: gray
- Material group: I
- Insulating material: Polyamide 66 (PA 66)
- Flammability class per UL94: V0
- Clamping spring material: Chrome nickel spring steel (CrNi)
- Contact material: Electrolytic copper (E<sub>Cu</sub>)
- Contact plating: tin-plated
- Fire load: 0.000 MJ
- Weight: 5.716 g
Environmental Requirements
- Limit temperature range: -60 +105 C
Commercial data
- Packaging type: BOX
- Country of origin: IN
- GTIN: 4045454539955
- Customs Tariff No.: 85369010000
