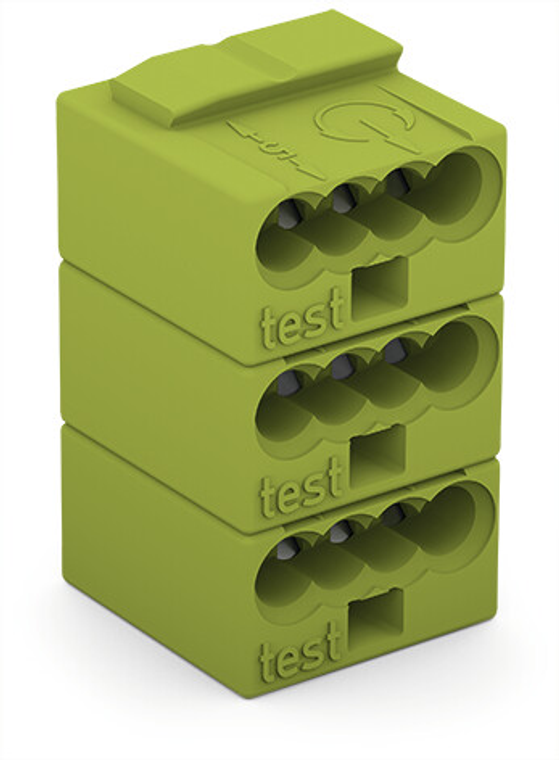

MICRO PUSH WIRE PCB connector; 4-conductor; AWG 24 - 18 solid; 3-pole assembly; light green.
The WAGO component equivalent to 243743 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be integrated seamlessly to enhance performance and reliability in electrical installations.
- approvals per:
- CSA
- clamping spring material:
- Copper alloy
- color:
- Light green
- conductor connection direction to pcb:
- 0
- conductor diameter:
- 0.5 ª 1 mm / 24 ª 18 AWG
- connectable conductor materials:
- Copper
- connection technology:
- PUSH WIRE«
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 10.5 mm / 0.413 inch
- drilled hole diameter with tolerance:
- 1.2 (-0.05 ª +0.05) mm
- fire load:
- 0.036 MJ
- flammability class per ul94:
- V0
- height:
- 10 mm / 0.394 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- mating direction to the pcb:
- 90
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- pin spacing:
- 5.75 mm / 0.226 inch
- pole no:
- 3
- rated current:
- 0.25
- rated current csa use group b:
- 0.291666666666667
- rated current csa use group d:
- 0.291666666666667
- rated current ul use group b:
- 0.291666666666667
- rated current ul use group d:
- 0.291666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 150 V
- rated voltage csa use group d:
- 150 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 150 V
- rated voltage ul use group d:
- 150 V
- ratings per:
- IEC/EN 60664-1
- solder pin diameter:
- 1 mm
- solder pin length:
- 4.5 mm
- solid conductor:
- 0.5 ª 1 mm / 24 ª 18 AWG
- strip length:
- 5 ª 6 mm / 0.2 ª 0.24 inch
- weight:
- 2.200 g
- width:
- 17.25 mm / 0.679 inch
