Wago

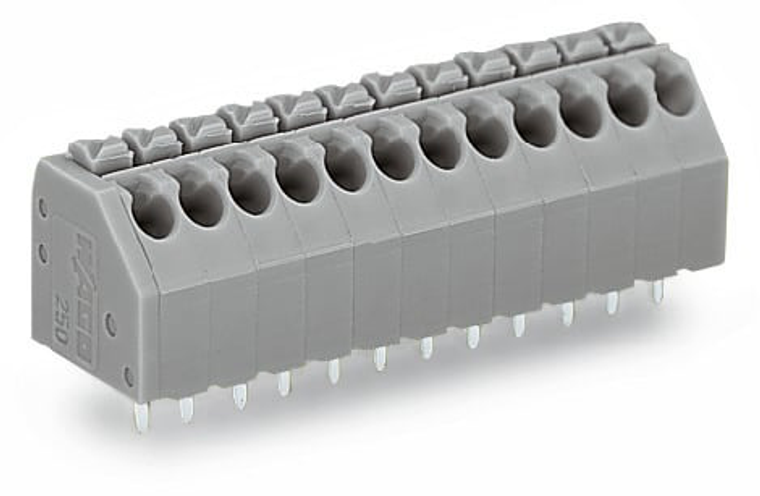

WAGO 250-124 Pack of 10

SKU:

250-124

UPC:

MPN:

250-124

Condition:

New

actuation type:

Push-button

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

45

connection technology:

Push-in CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

12 mm / 0.472 inch

drilled hole diameter with tolerance:

1 (+0.1) mm

fine stranded conductor:

0.2 1.5 mm / 24 16 AWG

fine stranded conductor with insulated ferrule:

0.25 1 mm

fine stranded conductor with uninsulated ferrule:

0.25 1 mm

fire load:

0.246 MJ

flammability class per ul94:

V0

height:

16.7 mm / 0.657 inch

height from the surface:

13.1 mm / 0.516 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

320 V

nominal voltage iii 3:

160 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

3.5 mm / 0.138 inch

pole no:

24

rated current:

0.333333333333333

rated current csa use group b:

0.416666666666667

rated current csa use group d:

0.416666666666667

rated current ul use group b:

0.208333333333333

rated current ul use group d:

0.208333333333333

rated surge voltage ii 2:

2.5 kV

rated surge voltage iii 2:

2.5 kV

rated surge voltage iii 3:

2.5 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

160 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.4 x 0.75 mm

solder pin length:

3.6 mm

solid conductor:

0.2 1.5 mm / 24 16 AWG

strip length:

8.5 9.5 mm / 0.33 0.37 inch

weight:

11.085 g

width:

85.5 mm / 3.366 inch
