Wago

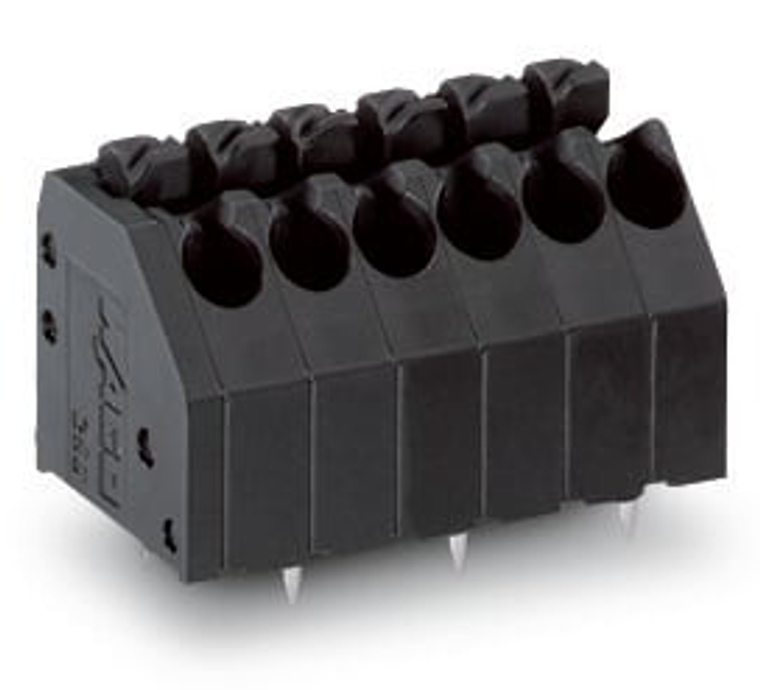

WAGO 250-208/353-604 Pack of 40

SKU:

250-208/353-604

UPC:

MPN:

250-208/353-604

Condition:

New

actuation type:

Push-button

approvals per:

CSA

clamping spring material:

Copper alloy

color:

Black

conductor connection direction to pcb:

45

connection technology:

Push-in CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

12 mm / 0.472 inch

fine stranded conductor:

0.2 1.5 mm / 24 16 AWG

fine stranded conductor with insulated ferrule:

0.25 1 mm

fine stranded conductor with uninsulated ferrule:

0.25 1 mm

fire load:

0.086 MJ

flammability class per ul94:

V2

height:

15.5 mm / 0.61 inch

height from the surface:

13.1 mm / 0.516 inch

insulation material:

Polyamide (PA46)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

IIIa

nominal voltage ii 2:

320 V

nominal voltage iii 3:

200 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THR

pin spacing:

3.5 mm / 0.138 inch

plated through hole diameter thr:

1 (+0.1) mm

pole no:

8

rated current:

0.333333333333333

rated current csa use group b:

0.416666666666667

rated current csa use group d:

0.416666666666667

rated current ul use group b:

0.333333333333333

rated current ul use group d:

0.208333333333333

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (staggered)

solder pin dimensions:

0.4 x 0.75 mm

solder pin length:

2.4 mm

solid conductor:

0.2 1.5 mm / 24 16 AWG

strip length:

8.5 9.5 mm / 0.33 0.37 inch

weight:

3.961 g

width:

29.5 mm / 1.161 inch
