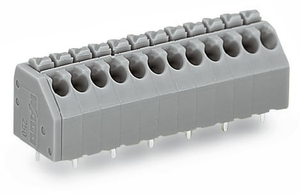

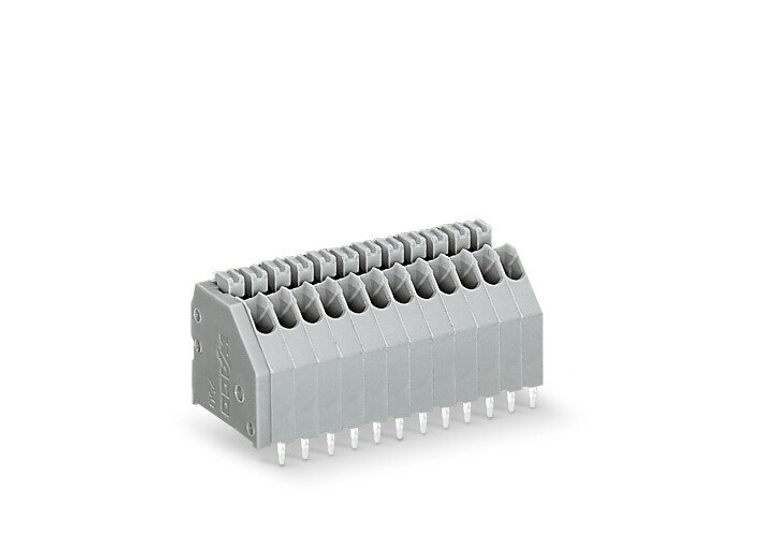

PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.5 mm; 12-pole; Push-in CAGE CLAMP; 0,50 mm²; gray.
The WAGO component equivalent to 250312 is a specific type of electrical connector or terminal block used for secure and reliable electrical connections. It is designed to provide a high level of performance and safety in various electrical applications, ensuring efficient conductivity and ease of use. This component is part of WAGO's extensive range of electrical interconnection products, known for their quality and innovation in the field of electrical engineering.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Copper alloy
- color:
- Gray
- conductor connection direction to pcb:
- 45
- conductor diameter:
- 0.4 0.8 mm / 24 20 AWG
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 12 mm / 0.472 inch
- drilled hole diameter with tolerance:
- 1 (+0.1) mm
- fine stranded conductor:
- 0.2 0.5 mm / 24 20 AWG
- fire load:
- 0.102 MJ
- flammability class per ul94:
- V0
- height:
- 16.7 mm / 0.657 inch
- height from the surface:
- 13.1 mm / 0.516 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 100 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 2.5 mm / 0.098 inch
- pole no:
- 12
- rated current:
- 0.166666666666667
- rated current csa use group b:
- 0.0833333333333333
- rated current csa use group d:
- 0.0833333333333333
- rated current ul use group b:
- 0.208333333333333
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.4 x 0.75 mm
- solder pin length:
- 3.6 mm
- solid conductor:
- 0.14 0.5 mm / 24 20 AWG
- strip length:
- 8.5 9.5 mm / 0.33 0.37 inch
- weight:
- 4.257 g
- width:
- 31.5 mm / 1.24 inch
