WAGO 250-611 Pack of 10
Wago
$29.20

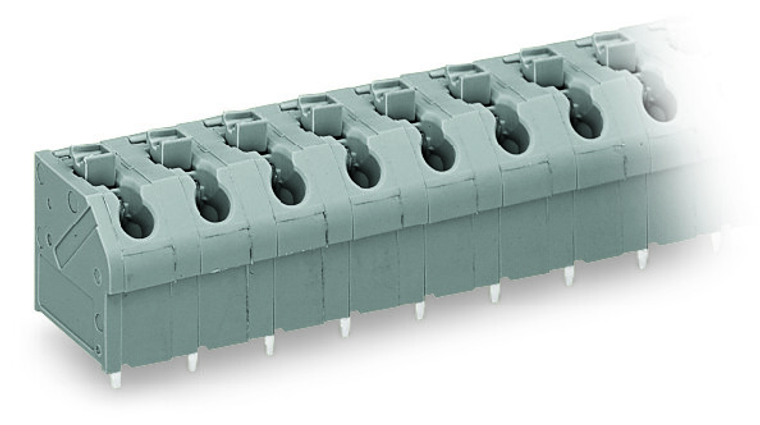

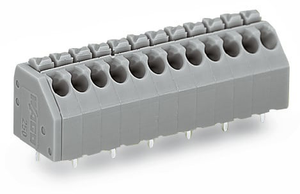

PCB terminal block; push-button; 1.5 mm²; Pin spacing 7.5 mm; 11-pole; Push-in CAGE CLAMP; 1,50 mm²; gray.
The WAGO component equivalent to 250611 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering ease of use and versatility. The equivalent model to 250611 maintains the same high standards of quality and performance, making it a trusted choice for professionals in the electrical industry.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 45
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 13 mm / 0.512 inch
- drilled hole diameter with tolerance:
- 1 (+0.1) mm
- fine stranded conductor:
- 0.75 1.5 mm / 18 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.5 1 mm
- fine stranded conductor with uninsulated ferrule:
- 0.5 1 mm
- fire load:
- 0.318 MJ
- flammability class per ul94:
- V0
- height:
- 20.5 mm / 0.807 inch
- height from the surface:
- 16.5 mm / 0.65 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 7.5 mm / 0.295 inch
- pole no:
- 11
- rated current:
- 17.5 A
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 630 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.5 x 0.75 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.5 1.5 mm / 20 14 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 13.483 g
- width:
- 81.5 mm / 3.209 inch
