Wago

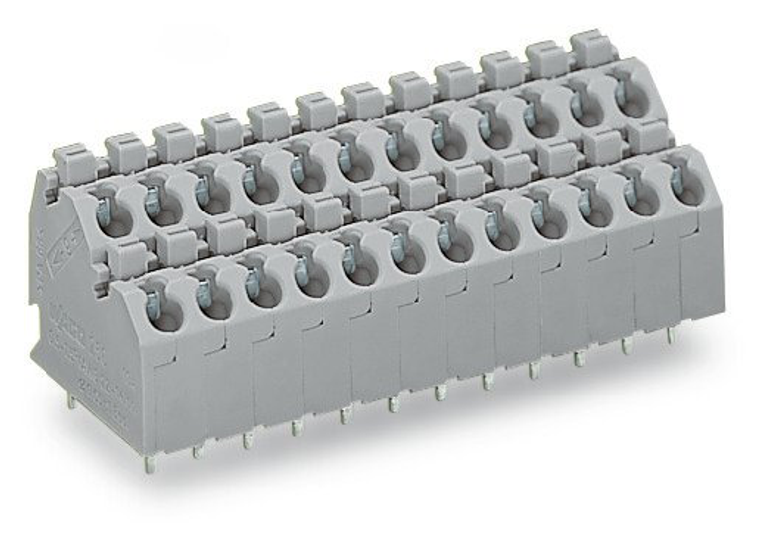

WAGO 250-702/000-023 Pack of 66

SKU:

250-702/000-023

UPC:

MPN:

250-702/000-023

Condition:

New

actuation type:

Push-button

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Green

conductor connection direction to pcb:

45

connection technology:

Push-in CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

21.7 mm / 0.854 inch

drilled hole diameter with tolerance:

1.2 (-0.1 +0.1) mm

fine stranded conductor:

0.75 1.5 mm

fine stranded conductor with insulated ferrule:

0.5 1 mm

fine stranded conductor with uninsulated ferrule:

0.5 1 mm

fire load:

0.091 MJ

flammability class per ul94:

V0

height:

24.9 mm / 0.98 inch

height from the surface:

20.9 mm / 0.823 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

5 mm / 0.197 inch

pole no:

4

rated current:

0.416666666666667

rated current csa use group b:

0.416666666666667

rated current csa use group d:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.5 x 0.75 mm

solder pin length:

4 mm

solid conductor:

0.5 1.5 mm / 20 16 AWG

strip length:

9 10 mm / 0.35 0.39 inch

weight:

4.030 g

width:

11.2 mm / 0.441 inch
