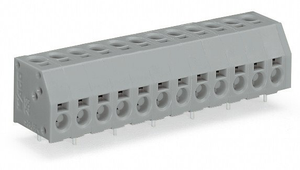

2-conductor PCB terminal block; 1.5 mm; Pin spacing 5 mm; 16-pole; PUSH WIRE.
The WAGO component equivalent to 253116 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various applications, including industrial automation, building technology, and process control, offering high performance and durability. It is known for its ease of installation and compatibility with other WAGO products, making it a versatile choice for professionals in the field.
- actuation type:
- Operating tool
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 0
- conductor connection direction to pcb 2:
- 90
- connection technology:
- PUSH WIRE
- connection technology 2:
- PUSH WIRE
- connection type 1:
- PUSH WIRE connection
- connection type 2:
- PUSH WIRE connection
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CN
- depth:
- 12.8 mm / 0.504 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fire load:
- 0.282 MJ
- flammability class per ul94:
- V0
- height:
- 16.6 mm / 0.654 inch
- height from the surface:
- 13 mm / 0.512 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- note strip length:
- 7 8 mm / 0.28 0.31 inch (for wiring on both sides)
- note strip length 2:
- 7 8 mm / 0.28 0.31 inch (for wiring on both sides)
- number of connection points:
- 1
- number of connection points 2:
- 1
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 16
- rated current:
- 17.5 A
- rated current csa use group b:
- 0.333333333333333
- rated current csa use group d:
- 0.333333333333333
- rated current ul use group b:
- 0.333333333333333
- rated current ul use group d:
- 0.333333333333333
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (staggered)
- solder pin dimensions:
- 0.5 x 0.8 mm
- solder pin length:
- 3.6 mm
- solid conductor:
- 0.5 1.5 mm / 20 16 AWG
- solid conductor 2:
- 0.5 1.5 mm / 20 16 AWG
- strip length:
- 8.5 9.5 mm / 0.33 0.37 inch
- strip length 2:
- 8.5 9.5 mm / 0.33 0.37 inch
- weight:
- 13.774 g
- width:
- 82 mm / 3.228 inch
