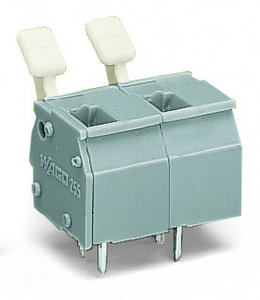

PCB terminal block; push-button; 2.5 mm²; Pin spacing 10/10.16 mm; 2-pole; CAGE CLAMP; commoning option; 2,50 mm²; gray.
The WAGO component equivalent to 255602 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is part of WAGO's extensive range of products known for their quality and durability, catering to both industrial and commercial electrical needs.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 90
- connection technology:
- CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 18.3 mm / 0.72 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.082 MJ
- flammability class per ul94:
- V0
- height:
- 18.2 mm / 0.717 inch
- height from the surface:
- 14.2 mm / 0.559 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 630 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10/10.16 mm / 0.394/0.4 inch
- pole no:
- 2
- rated current:
- 24 A
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 ª 2.5 mm / 25 ª 12 AWG
- strip length:
- 5 ª 6 mm / 0.2 ª 0.24 inch
- weight:
- 3.487 g
- width:
- 22.9 mm / 0.902 inch
